© Siemens AG 2013 All rights reserved. Answers for infrastructure and cities.

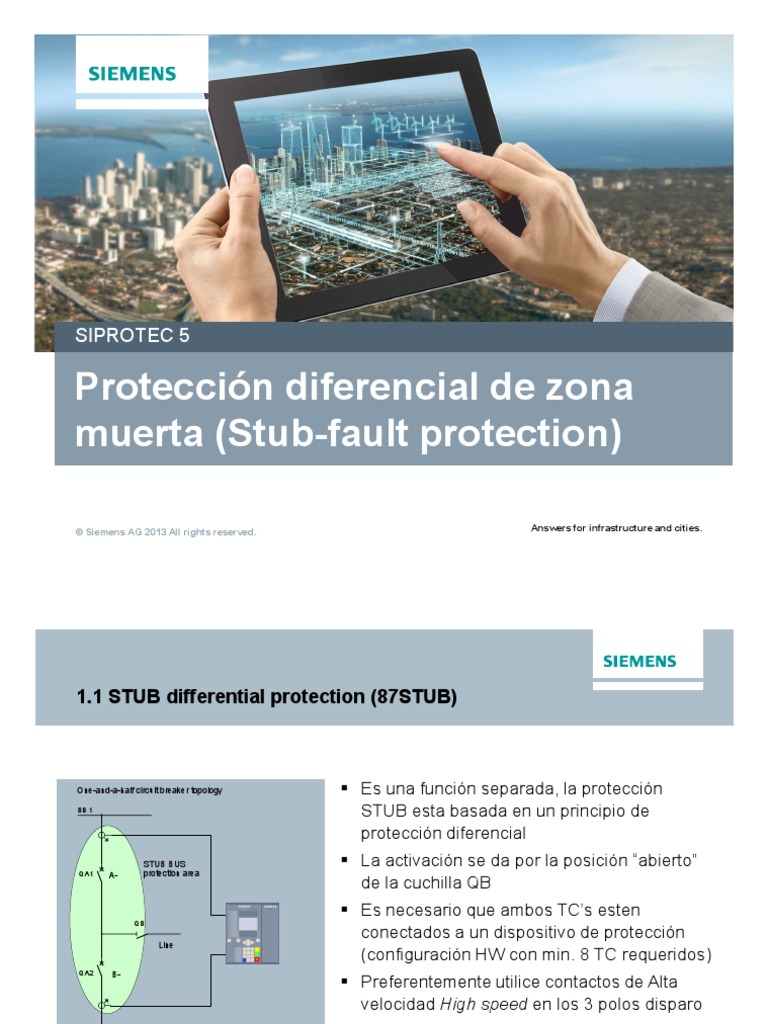

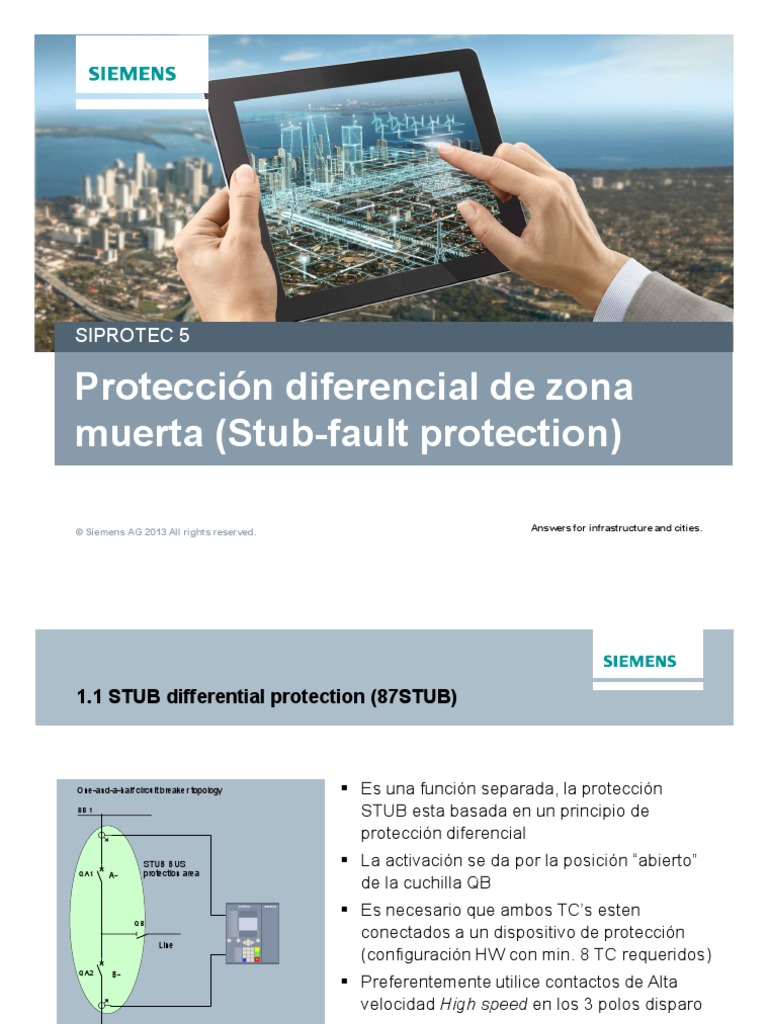

1.1 STUB differential protection (87STUB)
BB 1
son preconfiguradas en la plantilla “1
½ Circuit Breaker”.
STUB BUS
QA1 A- protection area
Con la configuración es para un
arreglo de interruptor y medio, y su
QB
funcionamiento es posible cuando la
Line
Línea está fuera de servicio, mientras
que los dos interruptores de circuito
QA2 B-
No es necesario contar con un entorno muy sensible del stub diff en fallas tan
cerca de la barra tiene con corrientes de falla muy grandes. Es más
recomendable establecer la función anterior corriente de carga completa para
máxima seguridad.
§ Adaptive stabilization
§ Stabilization current is the sum of all error
currents of both ends
§ Error currents are derived from CT
characteristic and internal error estimations
§ Principle as for the line differential protection
§ 2 stages: I stubdiff and I stubdiff fast
Setting recommendations:
§ I stubdiff = I stubdiff fast: higher than max. load current (1.2 … 2 times
I_Load max)
§ Normally high fault currents close to the busbar
IC SG EA PRO LM1
© Siemens AG 2013 All rights reserved.
Page 7
Stub Protection
CT errors
Settings
§ CT error A: error at nominal current IN; for 5p 3% and for 10p 5% is
recommended.
§ CT error B: error at defined point of starting saturation (20 e.g. for
5p20);recommended: 10% for 5p and 15% for 10p.
§ Changeover setting: at n’/n or kAlf / kAlf,N
© Siemens AG 2013 All rights reserved.
Page 8 IC SG EA PRO LM1
Stub Protection
Logic of stubdif stage
Assigning BI input:
• Use NC contact
Open signal only when DC is com-
pletely open
• BI type: OH
or
