CRISTIAN RIVERA GUTIERREZ – CALOS RANGEL FIGUEROA – ESTATICA.

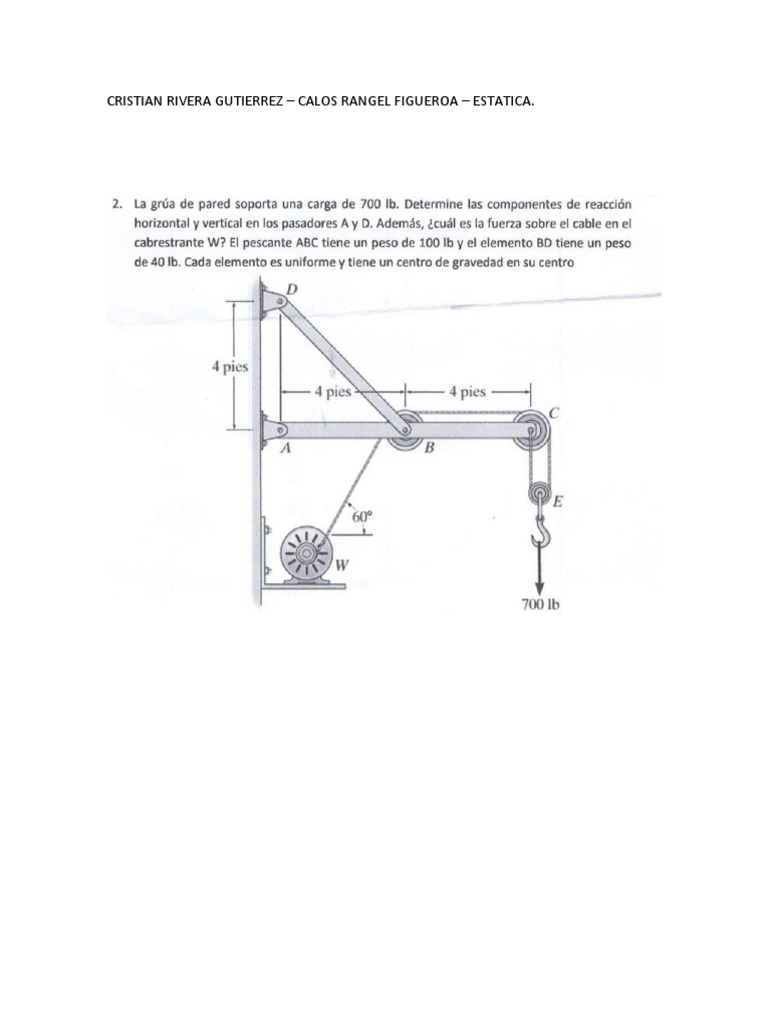

Polea E:

T T

700 lb

+↑ ∑ 𝐹𝑌 = 0; 2𝑇 − 700 = 0

𝑇 = 350𝑙𝑏

Ay
By

350lb
Ax Bx 350 lb
60°

350lb 100 lb 700lb

4 ft 4 ft

PARTE ABC

↺ + ∑ 𝑀𝐴 = 0; 𝐵𝑦 (4) − 700(8) − 100 (4) − 350 sin 60°(4) = 0

𝐵𝑦 = 1803.1 𝑙𝑏
 +↑ ∑ 𝐹𝑌 = 0 ; −𝐴𝑌 − 350 sin 60° − 100 − 700 + 1803.1 = 0

𝐴𝑌 = 700𝑙𝑏

+→ ∑ 𝐹𝑋 = 0 ; 𝐴𝑋 − 350 cos 60° − 𝐵𝑋 + 350 − 350 = 0

𝐴𝑋 = 𝐵𝑋 + 175 (1)

Dy

Dx 40 lb

4 ft

Bx

2 ft 2ft
By= 1803.1 lb

PARTE DB

↺ + ∑ 𝑀𝑂 = 0; −40 (2) − 1803.1 (4) + 𝐵𝑋 (4) = 0

𝐵𝑋 = 1823.1 𝑙𝑏

+→ ∑ 𝐹𝑋 = 0; − 𝐷𝑋 + 1823.1 = 0

𝐷𝑋 = 1.82 𝑘𝑖𝑝

+↑ ∑ 𝐹𝑌 = 0; 𝐷𝑌 − 40 − 1803.1 = 0

𝐷𝑌 = 1843.1 = 1.84 𝑘𝑖𝑝

DE LA ECUACION (1)

𝐴𝑋 = 2.00 𝑘𝑖𝑝

FDB=FBE = 0
NODO C

2
+↑∑Fy=0; FCB ( )-8=0
√5

FCB= 17,89 Kn (C) = 17,9 Kn

2
+→∑Fx=0; 17,89 ( )-8FCD=0
√5
FCD= 8,00 Kn (T)

NODO D

+→∑Fx=0 8,00-FDE=0 FDE=8,00kN (T)

NODO B

+→ ∑ 𝐹𝑋 = 0; FBA-17,89=0

FBA= 17,89 kN (C) = 17,9 kN (C)

NODO A

1
+↑∑Fy=0; FAE-17,89 ( )=0
√5

FAE= 8,00 Kn (T)

2
+→∑Fx=0; Ax-17,89 ( )=0
√5

Ax= 16,0 kN
