Prcticas CNC

Otoo 2011

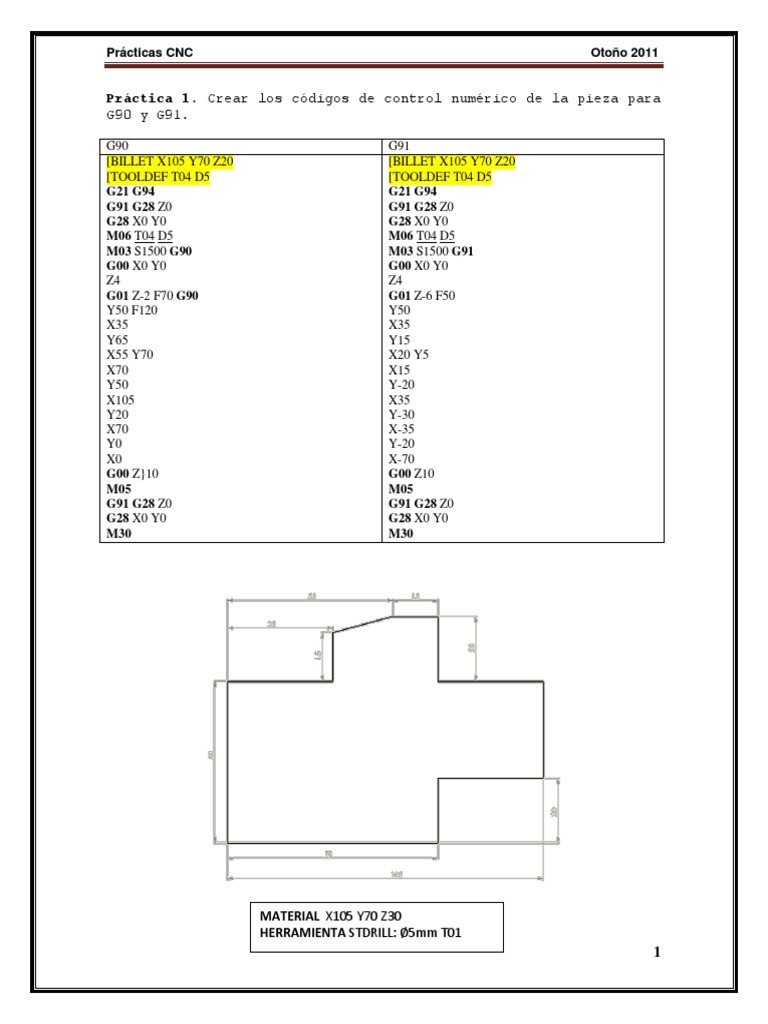

Prctica 1. Crear los cdigos de control numrico de la pieza para

G90 y G91.
G90
[BILLET X105 Y70 Z20
[TOOLDEF T04 D5
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T04 D5
M03 S1500 G90
G00 X0 Y0
Z4
G01 Z-2 F70 G90
Y50 F120
X35
Y65
X55 Y70
X70
Y50
X105
Y20
X70
Y0
X0
G00 Z}10
M05
G91 G28 Z0
G28 X0 Y0
M30

G91
[BILLET X105 Y70 Z20
[TOOLDEF T04 D5
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T04 D5
M03 S1500 G91
G00 X0 Y0
Z4
G01 Z-6 F50
Y50
X35
Y15
X20 Y5
X15
Y-20
X35
Y-30
X-35
Y-20
X-70
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30

MATERIAL X105 Y70 Z30

HERRAMIENTA STDRILL: 5mm T01

Prcticas CNC

Otoo 2011

Prctica 2. Crear los cdigos de control numrico de la pieza para G90 y

G91.
G90

G91

[BILLET X50 Y55 Z20

[TOOLDEF T03 D4
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T03 D4
M03 S2000 G90
G00 X0 Y0
Z3
G01 Z-2 F80
Y40 F100
G02 X5 Y55 R25 F40
G03 X45 Y55 R25 F40
G02 X50 Y40 R25 F40
G01 Y0 F100
X50
X45
G03 X5 Y0 R25 F40
G01 X5
X0
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30

[BILLET X50 Y55 Z20

[TOOLDEF T03 D4
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T03 D4
M03 S2000
G00 X0 Y0 G91
Z3
G01 Z-5 F80
Y40 F100
G02 X5 Y15 R25 F40
G03 X40 Y0 R25 F40
G02 X5 Y-15 R25 F40
G01 Y-40 F100
X-5
G03 X-40 Y0 R25 F40
G01 X-5 F100
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30

MATERIAL X50 Y55 Z20

HERRAMIENTA STDRILL: 4mm T03

Prcticas CNC

Otoo 2011

Prctica 3. Crear los cdigos de control numrico de la pieza para G90 y

G91.
G90

G91

[BILLET X100 Y55 Z20

[TOOLDEF T01 D6
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T01 D6
M03 S1500
G00 X0 Y0 G90
Z5
G01 Z-2.5 F60
Y15 F112
X20
G02 X80 Y15 R40 F56
G01 X100 F112
Y-15
X80
G02 X20 Y-15 R40 F56
G01 X0 F112
Y0
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30

[BILLET X100 Y55 Z20

[TOOLDEF T01 D6
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T01 D6
M03 S1500
G00 X0 Y0 G91
Z5
G01 Z-2.5 F60
Y15 F112
X20
G02 X60 Y0 R40 F56
G01 X20 F112
Y-30
X-20
G02 X-60 Y0 R40 F56
G01 X-20 F112
Y15
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30

MATERIAL X100 Y55 Z20

HERRAMIENTA STDRILL: 6mm T01

Prcticas CNC

Otoo 2011

Prctica 4. Crear los cdigos de control numrico de la pieza para G90 y

G91.
G90

G91

[BILLET X100 Y100 Z20

[TOOLDEF T01 D8
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T01 D8
M03 S2000 G90
G00 X0 Y0
Z0
G01 Z-5 F50
Z0 X100 F70
Z-5 Y100
Z0 X0
Z-5 Y0
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30

[BILLET X100 Y100 Z20

[TOOLDEF T01 D8
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T01 D8
M03 S2000 G91
G00 X0 Y0
Z0
G01 Z-5 F50
Z5 X100 F70
Z-5 Y100
Z5 X-100
Z-5 Y-100
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30

MATERIAL X100 Y100 Z20

HERRAMIENTA STDRILL: 8mm T01

Prcticas CNC

Otoo 2011

Prctica 5. Crear los cdigos de control numrico de la pieza para G90 y

G91.
G90

G91

[BILLET X100 Y100 Z20

[TOOLDEF T01 D6
[TOOLDEF T04 D4
[TOOLDEF T06 D10
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T01 D6
M03 S2000 G90
G00 X0 Y15
Z10
G01 Z-2 F50
Y85 F80
X15 Y100
X85
X100 Y85
Y15
X85 Y0
X15
X0 Y15
G00 Z10
M06 T04 D4
M03 S2000
G00 X20 Y28 G90
Z5
G01 Z-2 F80
Y72
G02 X28 Y80 R8 F40
G01 X72 F80
G02 X80 Y72 R8 F40
G01 Y28 F80
G02 X72 Y20 R8 F40
G01 X28 F80
G02 X20 Y28 R8 F40
G00 Z10
M06 T06 D10
M03 S2000
G00 X50 Y50 G90
Z10
G01 Z-10 F60
G00 Z10
G91 G28 Z0
G28 X0 Y0
M30

[BILLET X100 Y100 Z20

[TOOLDEF T01 D6
[TOOLDEF T04 D4
[TOOLDEF T06 D10
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T01 D6
M03 S2000 G91
G00 X0 Y15
Z10
G01 Z-12 F50
Y70 F80
X15 Y15
X70
X15 Y-15
Y-70
X-15 Y-15
X-70
X-15 Y15
G00 Z10 G90
M06 T04 D4
M03 S2000
G00 X20 Y28 G91
Z10
G01 Z-12 F80
Y44
G02 X8 Y8 R8 F40
G01 X44 F80
G02 X8 Y-8 R8 F40
G01 Y-44 F80
G02 X-8 Y-8 R8 F40
G01 X-44 F80
G02 X-8 Y8 R8 F40
G00 Z10
M06 T06 D10
M03 S2000
G00 X50 Y50 G90
Z10
G01 Z-20 F60
G00 Z30
G91 G28 Z0
G28 X0 Y0
M30

Prcticas CNC

Otoo 2011

Esquema de la prctica 5.

Prcticas CNC

Otoo 2011

Prctica 6. Crear el cdigo de control numrico aplicando una sub-rutina

y haciendo tres pasadas con G91.

[BILLET X50 Y55 Z20

[TOOLDEF T03 D4
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T03 D4
M03 S2000
G00 X0 Y0 G90
Z0
M98 P30050
G00 Z10
M05
G91 G28 Z0
G28 X0 Y0
M30
:0050
G01 Z-2 F80 G91
Y40 F100
G02 X5 Y15 R25 F50
G03 X40 Y0 R25 F50
G02 X5 Y-15 R25 F50
G01 Y-40 F100
X-5
G03 X-40 Y0 R25 F50
G01 X-5 F100
M99

Prcticas CNC

Otoo 2011

Prctica 7. Crear el cdigo de control numrico aplicando una sub-rutina

y haciendo tres pasadas con G91.

[BILLET X100 Y55 Z20

[TOOLDEF T01 D6
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T01 D6
M03 S1500
G00 X0 Y0 G90
Z0
M98 P20050
G00 Z10
G91 G28 Z0
G28 X0 Y0
M30
:0050
G01 Z-2.5 F60 G91
Y15 F112
X20
G02 X60 Y0 R40 F56
G01 X20 F112
Y-30
X-20
G02 X-60 Y0 R40 F56
G01 X-20 F112
Y15
M99

Prcticas CNC

Otoo 2011

Prctica 8. A travs del uso de ciclos enlatados cuadrados, crear el

cdigo de control numrico de la pieza.

[BILLET X120 Y60 Z20

[TOOLDEF T04 D6
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T04 D6
M03 S2000 G90
G00 X0 Y0
Z0
G172 I30 J15 K5 P0 Q-3 R0 X15 Y7.5 Z-6
G173 I0 K0 P75 T04 S2000 R60 F60 B3500 J50 Z10
M70 X15 Y37.5
M70 X75 X7.5
M70 X75 Y37.5
G00 Z10
G91 G28 Z0
G28 X0 Y0
M30

Prcticas CNC

Otoo 2011

Prctica 9. A travs del uso de ciclos enlatados cuadrados, crear el

cdigo de control numrico de la pieza.
[BILLET X100 Y100 Z20
[TOOLDEF T06 D8
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T06 D8
M03 S2000 G90
G00 X-50 Y0
Z0
M98 P20010
G170 R0 P0 Q-3 X22.5 Y22.5 Z-6 I0 J0 K15
G171 P60 S3000 R80 F80 B3500 J100
G170 R0 P0 Q-3 X-22.5 Y22.5 Z-6 I0 J0 K15
G171 P60 S3000 R80 F80 B3500 J100
G170 R0 P0 Q-3 X-22.5 Y-22.5 Z-6 I0 J0 K15
G171 P60 S3000 R80 F80 B3500 J100
G170 R0 P0 Q-3 X22.5 Y-22.5 Z-6 I0 J0 K15
G171 P60 S3000 R80 F80 B3500 J100
G00 Z10 G90
G91 G28 Z0
G28 X0 Y0
M30
:0010
G01 Z-3 F100 G90
Y50
X50
Y-50
X-50
Y0
M99

Prctica 10. Crear el cdigo de control numrico de la pieza.

10

Prcticas CNC

Otoo 2011

[BILLET X105 Y90 Z30

[TOOLDEF T04 D6
G21 G94
G91 G28 Z0
G28 X0 Y0
M06 T04 D6
M03 S2000 G90
G00 X0 Y10
Z0
M98 P20050
G170 R0 P0 Q-3 X40 Y30 Z-6 I0 J0 K10
G171 P60 S3000 R50 F80 B3500 J100
G00 Z10
G91 G28 Z0
G28 X0 Y0
M30
:0050
G01 Z-3 F100 G91
Y70
G02 X10 Y10 R10 F80
G01 X35 F100
X15 Y-20
X20
G02 X10 Y-10 R10 F80
G01 Y-10 F100
G03 X10 Y-10 R10 F80
G01 X5 F100
Y-30
G02 X-10 Y-10 R10 F80
G01 X-85 F100
G02 X-10 Y10 R10 F80
M99

11
