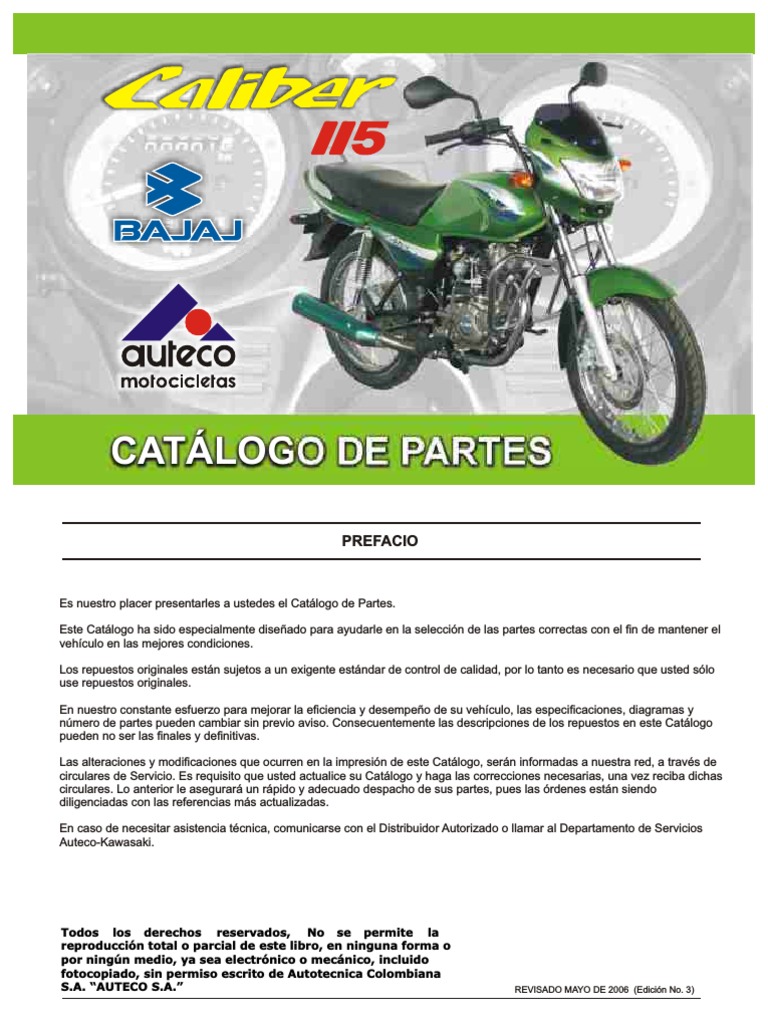

CATÁLOGO DE PARTES

PREFACIO

Es nuestro placer presentarles a ustedes el Catálogo de Partes.

Este Catálogo ha sido especialmente diseñado para ayudarle en la selección de las partes correctas con el fin de mantener el
vehículo en las mejores condiciones.

Los repuestos originales están sujetos a un exigente estándar de control de calidad, por lo tanto es necesario que usted sólo
use repuestos originales.

En nuestro constante esfuerzo para mejorar la eficiencia y desempeño de su vehículo, las especificaciones, diagramas y
número de partes pueden cambiar sin previo aviso. Consecuentemente las descripciones de los repuestos en este Catálogo
pueden no ser las finales y definitivas.

Las alteraciones y modificaciones que ocurren en la impresión de este Catálogo, serán informadas a nuestra red, a través de
circulares de Servicio. Es requisito que usted actualice su Catálogo y haga las correcciones necesarias, una vez reciba dichas
circulares. Lo anterior le asegurará un rápido y adecuado despacho de sus partes, pues las órdenes están siendo
diligenciadas con las referencias más actualizadas.

En caso de necesitar asistencia técnica, comunicarse con el Distribuidor Autorizado o llamar al Departamento de Servicios
Auteco-Kawasaki.

Todos los derechos reservados, No se permite la

reproducción total o parcial de este libro, en ninguna forma o
por ningún medio, ya sea electrónico o mecánico, incluido
fotocopiado, sin permiso escrito de Autotecnica Colombiana
S.A. “AUTECO S.A.” REVISADO MAYO DE 2006 (Edición No. 3)
 INDEX

PLATE PAGE PLATE PAGE

DESCRIPTION DESCRIPTION
N° N° N° N°

1 Cylinder head 1 24 Stand & Holder Step 24

2 Valve 2 25 Fender (Mudguard) 25
3 Camshaft/Tensioner 3 26 Wheel Rim/Spokes/Tyre/Tube 26
4 Cylinder & piston 4 28 Front Hub (For Disc Brake) 27
5 Crank shaft 5 29 Front Disc Brake 28
6 Transmission 6 30 Front master cylinder (For Disc Brake) 29
7 Change drum / Shift fork 7 31 Rear Hub 30
8 Gear change mechanism 8 32 Brake pedal 31
9 Crankcase RH/ Engine assly. 9 33 Handle bar 32
10 Crankcase LH 10 34 Fork front 33
11 Pipe oil 11 35 Painted parts 34-37
12 Cover Generator & Cover Chain 12 36 Fuel tank cap & Tap Assly 38
13 Clutch Cover 13 37 Chain case 39
14 Clutch 14 38 Fittings - Petrol tank & Side cover 40
15 Kick starter mechanism 15 39 Meter assly 41
16 Carburettor 16 40 Control Cables 42
17 Air Filter Assly & Battery Box 17 41 Head lamp assly 43
18 Muffler & Seat Assly 18 42 Tum signal lamp 44
19 Oil pump 19 43 Rear Number Plate 45
20 Magneto assly 20 44 Tail Lamp assly 46
21 Frame & Grip Frame 21 45 Electrical equipment / TPS Assly 47
22 Engine mounting bracket 22 46 Accessories 48
23 Swing arm / Rear shock absorber 23 Kits list 49
 PICTORIAL INDEX

PAGE No. PAGE No. PAGE No.

PLATE N° 1 : CYLINDER HEAD 1 PLATE N° 2 : VALVE 2 PLATE N° 3 : CAMSHAFT / TENSIONER 3

PAGE No. PAGE No. PAGE No.

PLATE N° 4 : CYLINDER AND PISTON 4 PLATE N° 5 CRANK SHAFT 5 PLATE N° 6 : TRANSMISSION 6
 PICTORIAL INDEX

PAGE No. PAGE No. PLATE N° 9 : CRANKCASE RH PAGE No.

PLATE N° 7 CHANGE DRUM / SHIFT FORK 7 PLATE N° 8 : GEAR CHANGE MECHANISM 8 9
ENGINE ASSLY

PAGE No. PAGE No. PLATE N° 12 : COVER GENERATOR PAGE No.

PLATE N° 10 : CRANKCASE - LH. 10 PLATE N° 11 : PIPE OIL 11 12
& COVER CHAIN
 PICTORIAL INDEX

PAGE No. PAGE No. PAGE No.

PLATE N° 13 :CLUTCH COVER 13 PLATE N° 14: CLUTCH 14 PLATE N° 15 : KICK STARTER MECHANISM 15

PAGE No. PAGE No. PAGE No.

PLATE N° 16 : CARBURETTOR 16 PLATE 17 : AIR FILTER ASSLY BATTERY BOX 17 PLATE 18 : MUFFLER AND SEAT ASSLY 18
 PICTORIAL INDEX

PAGE No. PAGE No. PAGE No.

PLATE N° 19 : OIL PUMP 19 PLATE N° 20 : MAGNETO ASSLY 20 PLATE N° 21 : FRAME & GRIP FRAME 21

PAGE No. PLATE N° 23 : SWING ARM / PAGE No. PAGE No.

PLATE N° 22 : ENGINE MOUNTING BRACKET 22 23 PLATE N° 24: STAND & HOLDER STEP 24
REAR SHOCK ABSORBER
 PICTORIAL INDEX

PAGE No. PLATE N° 26 : WHEEL RIM / SPROKES PAGE No. PAGE No.
PLATE N° 25 : FENDER (MUDGUARD) PLATE N° 28 : FRONT HUB(FOR DISC BRAKE)
25 / TYRE/ TUBE 26 27

PAGE No. PLATE N° 30 : FRONT MASTER CYLINDER PAGE No. PAGE No.
PLATE N° 29: FRONT DISC BRAKE PLATE N° 31: REAR HUB
28 (FOR DISC BRAKE) 29 30
 PICTORIAL INDEX

4 10
5
9

22
23
25

26 27
6 24
27 12
B A
15 16
A B
8

14
1 20
18 19 13

21

PAGE No. PAGE No. PAGE No.

PLATE N° 32 : BRAKE PEDAL 31 PLATE N° 33: HANDLE BAR 32 PLATE N° 34 : FORK FRONT 33

PAGE No. PLATE N° 36 : FUEL TANK CAP & PAGE No. PAGE No.
PLATE N° 35: PAINTED PARTS PLATE N° 37: CHAIN CASE
34 - 37 TAP ASSLY 38 39
 PICTORIAL INDEX

PLATE N° 38 : FITTINGS -PETROL TANK PAGE No. PAGE No. PAGE No.
PLATE N° 39 : METER ASSEMBLY PLATE N° 40 : CONTROL CABLES
& SIDE COVER 40 41 42

PAGE No. PAGE No. PAGE No.

PLATE N° 41 : HEAD LAMP ASSLY 43 PLATE N° 42 : TURN SIGNAL LAMP 44 PLATE N° 43 : REAR NUMBER PLATE 45
 PICTORIAL INDEX

PAGE No. PLATE Nº 45 : ELECTRICAL EQUIPMENT PAGE No. PLATE N° 46 : ACCESSORIES PAGE No.
PLATE N° 44 : TAIL LAMP ASSLY 46 47 (LEG GUARD,SAREE GUARD & MIRRORS) 48
/TPS ASSLY
PLATE N° 1 : CYLINDER HEAD
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 36-DF10-01 O´Ring Kit 1 (Set of A&B) Ref.Page N° 49
2 DD-1014-70 Tappet Cap 2 Granite Silver painted
3 39-1673-04 Flanged bolt 6
4 31-1010-08 Guide Valve 2
5 39-1021-21 Ring´O 2 Alt to 39-2384-21

6 DD-1013-47 Bolt 2
7 DD-1013-50 Stud 2
6 8 8 DD-1013-49 Bolt 4
9 DD-1014-39 Head Comp Cylinder 1 Granite Silver painted
3 2
9 10 DD-1014-69 Cover (OHC) 1 Granite Silver painted
A 16
7 11 DD-1013-51 Bolt 2
7
4 12 39-1000-06 Hollow Dowel Pin 2
A
5 2 13 DD-1010-10 Gasket Head 1
B 3 14 39-1017-21 Ring´O 2
10
15 DD-1014-44 Pipe Intake 1 Granite Silver painted

16 39-1612-11 Plain washer 4

14 17 31-1011-75 Insulator 1
1 11
12 14
12
17
3 13
15

CALIBER 115 1
PLATE N° 2 : VALVE
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 31-1010-21 Shaft Rocker 2
2 DF-1010-55 Screw 2
3 31-1012-35 Rocker arm assembly 2
4 31-1011-04 Stopper 1
5 39-0702-01 Screw Pan Cros 2

6 31-1010-18 Retainer Valve Spring 2

3 7 DD-1014-40 Spring Stiffer 2
2
3 8 36-3110-08 Valve Repair Kit 2 (Set of A,B & C)Page N° 49
4 2
5
9 DD-1011-34 Valve Intake 1
10 DD-1011-35 Valve Exhaust 1
1

A
6 5 A
6

7 11
7 8
B
C B
8 C

10
9

CALIBER 115 2
PLATE N° 3 : CAMSHAFT / TENSIONER
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 31-1010-26 Guide Chain 1
2 39-2040-21 Ring´O 1
3 22-1504-51 Screw 2
4 31-1010-24 Sprocket (28T) 1
5 DD-1014-41 Camshaft Assembly 1

3 6 31-1010-33 Chain 1
5 7 DD-1014-63 Tensioner Assembly 1 Granite Silver painted
8 39-1070-01 Hex Screw 2
1 9 39-0732-12 Washer Spring 2
3 4
6
10 39-0198-11 Plain Washer 2

11 31-1010-25 Guide Chain 1

12 13
12 39-0748-01 Screw Pan cross 2
11
13 39-0999-06 Hollow Dowel pin 2

12

13

10
9
8
2
7

CALIBER 115 3
PLATE N° 4 : CYLINDER AND PISTON
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-1000-06 Hollow dowel pin 2
2 DD-1010-07 Gasket For Cyl.Block 1 Alt to DD-1013-05
3 DD-1014-45 Piston assly std 1
DD-1014-45-STD/47 Piston assly std 1
DD-1014-45-025/47 Piston assly 0.25 1
DD-1014-45-050/47 Piston assly 0.50 1
6 DD-1014-45-075/47 Piston assly 0.75 1
DD-1014-45-100/47 Piston assly 1.00 1
1
4 DD-1010-14 Piston ring set std 1
5 39-0985-17 Wire Circlip 2

1 6 DD-1014-78 Cylinder Block Piston assly 1

2
1

4
3

5
5

CALIBER 115 4
PLATE N° 5 CRANK SHAFT
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-1055-15 Flanged Nut 1
2 01-1006-10 Woodruff Key 1
3 DD-1011-17 Crankshaft assly 1
4 31-1011-73 Ket Woodruff 2
4 5 31-1010-76 Gear Primary Helical (23T) 1
3
4
6 31-1010-75 Gear (21T) 1
7 39-1053-15 Flanged Nut 1 Alt. To 92015-1341
2 8 DD-1014-47 Flywheel 1
9 DD-1014-75 Special washer 1

8
10

CALIBER 115 5
PLATE N° 6 : TRANSMISSION
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-0994-11 Plain washer 1
2 DD-1010-92 Gear Transmission Spur(2nd) 1
6 3 31-1010-79 Gear Transmission Spur(3rd) 1
4 39-0987-17 Ring Snap (16mm) 2
5 5 31-1010-82 Gear Transmission Spur (Top) 1

4
7 6 31-1012-19 Shaft Transmission Input (1st) 1
3
7 31-1012-21 Gear Transmission Spur (Low) 1
2
8 8 31-1010-84 Gear Transmission Spur (Top) 1
1 9 31-1010-83 Gear Transmission Spur (3rd) 1
10 31-1010-80 Shaft Transmission Output(2nd) 1
9 4

11 39-0989-17 Ext.Circlip 1
12 DD-1011-36 Sprocket Output 1
10 14
DM-1011-14 Sprocket Output
13
12 13 31-1011-17 Collar (Steel) 1
31-1012-16 Colllar (Sintered) 1 Alt to 31-1011-17
14 39-1018-21 O´Ring 1
15 DM-1011-15 Lock Plate 1 From May/04
16 39-1981-04 Allen Bolt 2 From May/04
11

12

15

16

CALIBER 115 6
PLATE N° 7 CHANGE DRUM / SHIFT FORK
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 31-1010-81 Fork Shift 1
31-1011-91 Fork Shift 1 Alt to 31-1010-81
2 31-1010-51 Rod Shift 2
3 31-1011-68 Drum assly change 1
4 36-3110-02 Holder for Drum kit 1 Ref.Page N° 49
5 31-1010-47 Fork Shift 1
2
31-1011-92 Fork Shift 1 Alt . To 31-1010-47

4
1

CALIBER 115 7
PLATE N° 8 : GEAR CHANGE MECHANISM
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1013-04 Lever 1
2 30-1010-86 Bolt 1
3 31-1010-55 Spring 1
4 31-1011-05 Plate Position 1
5 5 39-0746-01 Screw pan Cross 2

11 4 6 DD-1010-77 Lever Comp. Change Shaft 1

7 DD-1011-06 Bolt 1
8 39-2474-04 Flanged Bolt 1
5
9 DD-1010-71 Lever Change 1
1 2 10 31-1011-08 Damper 1
12

11 DD-1012-98 Spring 1
13
12 DG-1011-29 Space 1
7 6
13 31-1010-54 Spring 1

9
8

10

CALIBER 115 8
PLATE N° 9 : CRANKCASE RH / ENGINE ASSLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-1864-20 Bearing Ball 1 Alt to 39-2293-20
2 39-0999-06 Hollow Dowel pin 1
3 01-1701-11 Ball Bearing 1
4 31-1211-00 Oil Strainer 1
5 DG-1014-98 Gasket 1

6 DD-1012-75 Plug 1
7 01-1701-10 Ball Bearing 1
2 8 DD-1014-23 Engine Assly 1 N.I.
9 DD-1014-66 Crank case RH 1 Granite Silver painted
3

1 4

CALIBER 115 9
PLATE N° 10 : CRANKCASE - LH.
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 01-1701-11 Ball Bearing 1
2 39-1050-06 Hollow Dowel pin 3
3 39-1066-04 Bolt Flanged Small 3
4 39-1043-19 Oil Seal 1
5 39-1080-19 Seal Oil 1

6 39-1008-20 Bearing Needle 1

7 39-0702-01 Screw Pan Cros 2
11
14 8 31-1010-56 Guide 1
9 31-2010-81 Switch Comp.(Neutral) 1
12 10 39-0703-11 Plain Washer * * as required
10
9 1
11 39-1075-04 Bolt Flanged Small 7
12 30-1010-15 Gasket 1
8 13 DD-1014-65 Crank case LH 1 Granite Silver painted
2 14 DM-1010-52 Breather tube assly 1
7
7
5

4 13
3

CALIBER 115 10
PLATE N° 11 : PIPE OIL
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1211-20 Pipe oil Assly 1
2 DD-1210-03 Pipe oil 1
3 39-1023-04 Bolt 1
4 39-1062-04 Bolt Flanged small 1
5 39-1727-11 Gasket 8

6 DD-1210-09 Bolt 4
3
7 31-1210-06 Gasket 2
7
7

6
4

5
5 1

5
5
5

CALIBER 115 11
PLATE N° 12 : COVER GENERATOR & COVER CHAIN
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 31-1010-62 Bolt 1
2 39-1019-21 Ring´o 1
3 DD-1014-64 Cover Generator 1 Granite Silver painted

6 4 31-1010-61 Plug 1
5 31-1011-13 Gasket 1
4

5 6 DD-1010-58 Kasket (Generator Cover) 1

7 39-1074-04 Bolt Flanged Small 5
1 2 8 39-0999-06 Hollow Dowel pin 2
9 DD-1014-24 Cover Chain(Engine) 1 Granite Silver Painted
8 10 39-2147-04 Bolt Flanged Small 3

10

CALIBER 115 12
PLATE N° 13 :CLUTCH COVER
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1014-59 Clutch cover assly / Decal 1 Granite Silver Painted
2 DM-1010-50 Label clutch cover 1 K-TEC
3 DD-1014-71 Clutch Cover Cap 1 Granite Silver painted
52-DD03-46 Clutch Cover Cap For DD-1211-81
4 39-1671-21 O´ring 1
5 39-1673-04 Flanged bolt 3

3
6 6 DD-1210-06 Element oil filter 1
5
DD-1211-81 Element oil filter whit spring (6 & 7) 1 For 52-DD03-46
8
7 DD-1010-57 Spring 1
8 DD-1210-94 Rubber filter 1
7 4
15 9 DD-1010-50 Plate position 1
2
10 39-1062-04 Bolt flanged small 2
18
16
1 9
11 11 39-1046-19 Seal oil 1
10 19 12 31-1010-67 Guage 1
12
13 39-1041-19 Seal oil 1
14 30-1011-42 Seal oil 1
15 DD-1013-25 Cap oil filler 1

13 16 39-2134-21 O´RING 1
14
19 17 DD-1010-60 Gasket(Clutch cover) 1
1 18 39-1075-04 Bolt flanged small 10
19 39-0999-06 Hollow Dowel pin 2
17

CALIBER 115 13
PLATE N° 14: CLUTCH
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1014-57 Housing Comp. Clutch 1
2 DD-1014-49 Clutch Plate Assly 1
3 39-2593-11 Plain Washer 2
4 31-1011-46 Collar 1
5 28-1011-31 Wheel Clutch 1

6 DD-1013-89 Plate Friction (Adiar) 5

7 28-1011-34 Plate Clutch 4
8 28-1011-32 Hub Clutch 1
3 6 9 28-1012-14 Spring 6
10 39-0980-04 Hex. Bolt 6
6
1
4 11 39-1053-15 Flanged Nut 1
3 7
6 12 39-2403-20 Ball Bearing 1
5 10 13 31-1011-48 Rod push 1
7
9 14 31-1011-44 Lever Assly Complete 1
10 15 DD-1010-79 Holder 1
6
2
7
9 15
6
7 8

14
13
12
11

CALIBER 115 14
PLATE N° 15 : KICK STARTER MECHANISM
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-2474-04 Flanged bolt 1
2 39-1920-01 Screw pan Cros 2
3 DD-1012-54 Guide Kick 1
4 DD-1013-27 Lever Assly Kick 1 Alt to DD-1012-44
DP-1013-67 Lever Assly Kick 1 No Interchangeable
5 DD-1010-97 Bush (Damper) 1

6 36-3110-27 Boss Kick set A to E 1 Ref. Page N° 49

7 36-DF10-03 Ratcher & Gear set K & L 1 Ref. Page N° 49
5 8 36-3110-20 Circlip & washer set F to H 1 Ref. Page N° 49
9 31-1011-24 Shaft Kick 1
1 14
DU-1010-45 Shaft Kick 1 No Interchangeable
4 10 31-1010-40 Guide 1
D F
7 F
G
L 11 31-1010-41 Spring 1
E
13 C 12 39-0993-11 Plain Washer 1
A B 9
G 13 DD-1013-30 Boss Kick 1
F 30-1012-33 Boss Kick 1 No Interchangeable
6 K
H 14 DU-1010-50 Lever Kick 1
G 10
12 F
11

8
2
3

CALIBER 115 15
PLATE N° 16 : CARBURETTOR
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1211-42 Carburettor Assly(Keihin FIE) 1
2 28-1210-26 Insulator(Kehin Carburettor 1
3 39-1019-21 O´Ring 1
4 DD-1211-64 Needle jet 1
5 DD-1211-65 Holder-needle jet 1

6 DD-1211-66 Main jet 1

20 1 7 DD-1211-67 Slow Jet 1
2 8 DD-1211-68 Valve Complete Float 1
9 DD-1211-69 Float Complete 1
17 10 DD-1211-70 Gasket-Float chamber 1
14 18
3
11 DD-1211-71 Screw with washer 2
12 DD-1211-72 Valve throttle 1
13
15 13 DD-1211-73 Spring -Valve throttle 1
14 DD-1211-74 Gasket top 1
16
19 15 DD-1211-75 Screw Idling 1
12 8
9
5
7 16 DD-1211-76 Spring -Idling screw 1
6 10 17 DD-1211-77 Screw-VCS 1
18 DD-1211-78 Spring-Screw-VCS 1
4
19 DD-1211-79 Jet BSV 1 N.I.
11 20 39-1959-04 Flanget bolt 2 For mounting Carburettor

CALIBER 115 16
PLATE 17 : AIR FILTER ASSLY BATTERY BOX
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1211-45 Filter assly air 1
2 DM-1210-03 Case air filter 1
3 39-0986-08 Pin Cotter 1
4 DM-1210-06 Duct(Carburettor) 1
5 31-1210-29 Element air filter 1

6 DM-1210-07 O´ring air filter 1

7 DM-1210-04 Cap 1
8 01-1106-09 Plain washer 4
4 9 39-0830-01 Screw pan cross 4
10 DG-1611-66 Screw (Mounting air filter) 2
19 9
18 8 11 39-1789-24 Washer(Nylon) 2
10 12 DM-1210-10 Band (Battery) 1
11 13 31-1610-07 Damper battery 2
2
14 DM-1210-14 Tube oil drain 1
15 DM-1210-26 Clamp 1

6 7
5 16 39-1680-04 Flanged bolt(Battery) 1
15 3 17 DM-2210-01 Band - Tool kit 1
13 1 18 39-0711-11 Washer plain 2
14
17 19 39-0747-01 Screw pan Cros 2
12 16

CALIBER 115 17
PLATE 18 : MUFFLER AND SEAT ASSLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 31-1010-14 Gasket 1
2 39-0198-11 Plain Washer 2
3 39-0732-12 Spring washer 2
4 39-2145-15 Nut 2
5 DD-1014-25 Muffler Assly comp 1

6 39-1850-04 Flanged Bolt 1

7 DP-1013-09 CoverMuffler Front 1 N.I.
8 DD-1014-28 Cover Muffler Rear 1 N.I.
10
9 39-2584-01 Screw SS. 4 Cover Muffler Mtg
10 DD-2110-21 Seat assly comp. 1
4
1 2 3 11 DD-1610-28 Lock Assly Seat 1
12 39-0743-01 Screw CSK Cross 2
6
9 13 DH-1611-55 Damper Silencer 1
15
7 14 DH-1611-57 Tube washer 1
9
12
15 39-2425-11 Plain washer 2
8

11 16 DD-1610-71 U-Nut 1
13
15

14
16 5

CALIBER 115 18
PLATE N° 19 : OIL PUMP
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-1078-01 Screw pan Cross 2
2 39-0753-01 Screw pan Cros 1
3 DF-1210-03 Pump Assly. Oil without lug 1
4 39-0999-06 Pin dowel 1
5 39-1013-21 Ring´O 2

1 2

4
5

CALIBER 115 19
PLATE N° 20 : MAGNETO ASSLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1110-39 Magneto assly/Brg./Oil Seal 1
2 31-1110-01 Cap spark Plug 1
3 DD-1110-27 Stator assly 1
4 39-1042-19 Seal Oil (HTA make) 1
5 39-1003-20 Bearing ball 1

6 6 39-1028-21 Ring´O 1
4 5
7 39-1659-11 Plain washer 3
3 8 DD-1110-42 CDI assly with Damper 1
9 DD-1110-06 Pulser Coil Assly 1
10 39-2473-04 Flanged Bolt 1
16
1
11 DD-2011-57 Regulator/Rectifier (R/R) unit 1
7 9
12 DD-1110-18 Plug Spark (NGK C7HSA) 1
8
13 TE-0066-02 Coil Ignition without cap 1
14 39-0745-01 Screw pan cross 2
14
15 15 DD-1013-18 Bolt 3
10

16 DD-1110-05 Exciter coil 1

13
11

12

CALIBER 115 20
PLATE N° 21 : FRAME & GRIP FRAME
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-2481-04 Flanged Bolt 4
2 30-1810-74 Upper Bearing race 1
3 30-1810-07 Bearing Cone 1
4 30-1810-08 Bearing Race 1
5 DF-1810-90 Nut 1

6 DF-1810-52 Cap - Steering 1

7 30-1810-06 Ball Steel 46
5 8 DD-1613-59 Frame Comp / Brg.races 1
6 1 9 DD-2210-27 Grip Frame 1
3
7
2

4
7

CALIBER 115 21
PLATE N° 22 : ENGINE MOUNTING BRACKET
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1613-44 Silent Bush 6
2 DD-1613-56 Spacer Assly 2
3 DD-1613-51 Bracket Engine Front 2
4 39-1068-04 Hex.Head Bolt 1
5 39-0248-11 Plain Washer 4

6 39-1225-15 Hex. Nut/Flange 4

7 DD-1613-54 Bracket Engine upper LH 1
8 DD-1613-55 Bracket Engine upper RH 1
8
9 39-2311-04 Bolt Hex./Flange 2
10 DD-1613-52 Bracket Engine Mounting RH 1
1
7
11 DD-1613-53 Bracket Engine Mounting RH 1
6
6
12 39-2571-04 Hex.Head Bolt 2
5 13 39-2479-15 Flange Nut 3
9
15 14 14 39-1068-04 Bolt 2
15 39-2470-04 Flanged Bolt 1
16 3
5 13
4
13 16 39-1940-04 Flange Bolt 2 Leg guard Mtg.
5
14
12 10 /11
1
2
12 1

CALIBER 115 22
PLATE N° 23 : SWING ARM / REAR SHOCK ABSORBER
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-0712-15 Domed Cap Nut 4
2 39-0737-12 Washer Spring 4
3 39-0714-11 Washer Plain 8
4 DD-1710-26 Rear Shock Absorber 2
5 DH-1610-59 Rubber Pillion Step 2

6 39-0248-11 Plain Washer 2

7 31-1710-06 Shaft Swing Arm 1
3 3 2 1 8 39-0789-12 Washer Spring 1
3 9 39-0201-11 Plain Washer 2
10 30-1710-18 Bushing Rubber 2
22 16
17
11 39-0708-15 Nut Hex 1
12 DD-1710-13 Arm Comp.Swing / Bush 1
8 11
9 6 4 13 DD-1613-61 Stay (Left) 1
10 10
6 9 14 DD-1613-60 Stay (Right) 1
7
15 39-2481-04 Flanged Bolt 2
12

16 39-0553-02 Screw 2
15
3 21 17 39-0454-11 Plain Washer 2
19 18 30-1710-23 Adjuster Chain (LH) 1
13/14
2 19 39-0711-11 Washer Plain 2
1
19 20 20 39-0292-15 Hex Nut 4
18 20
5 20
20
21 30-1710-24 Adjuster Chain (RH) 1
22 31-1710-12 Damper for swing arm 1

CALIBER 115 23
PLATE N° 24: STAND & HOLDER STEP
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DF-1610-96 Damper - Step Front 2
2 DF-1612-49 Holder Step 1
3 39-1940-04 Flanged Bolt 4
4 DF-1611-02 Bolt 1
5 39-0422-15 Nylock Nut 1

6 DD-1610-63 Stand Side 1

7 DD-1613-80 Spring 2
8 30-1611-57 Shaft Stand 1
2 1 9 DD-1613-38 Stand Centre with Damper 1
1
10 39-0787-08 Pin Cotter 1

11 DG-1611-24 Damper 1

3
4
5
10

8
7
6

11
9
7

CALIBER 115 24
PLATE N° 25 : FENDER (MUDGUARD)
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-2222-04 Flanged Bolt 4
2 DD-1610-13 Grommet 1
3 39-0211-11 Plain Washer 4
4 39-2483-04 Flange Bolt 6
5 DD-1610-38 Clamp For Front Fender 1

6 DD-1610-51 Flap 1
7 31-2010-21 Clamp 1
8 DM-1610-09 Fender Rear Front 1
9 39-0711-11 Plain Washer 2
10 39-0817-15 Hex Nut Flanged 4

5 11 DD-1613-29 Fender Rear 1

2 12 DD-1610-11 Brace fender 1

4
12 7

1
3
8
9 11
10
10
6 4 3

CALIBER 115 25
PLATE N° 26 : WHEEL RIM / SPROKES/ TYRE/ TUBE
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 16-1510-66 Nipple Spoke 72
2 DP-1510-19 Spoke Inner Front (3.5 Dia) 18
DH-1015-24 Spoke Inner Rear 18
3 DP-1510-20 Spoke Outer Front (3.5 Dia) 18
1 DH-1510-25 Spoke Outer Rear 18
3 4 DE-1510-30 Wheel Rim (1.6 x 18) 1
2
5 30-1510-28 Wheel Rim(1.85 x 18) 1

6 41070-2718-NF21/18 Tyre Front 275X18 "IRC" Sport 1

41070-2718-NR53/18 Tyre Front 275X18 "IRC" Pistera 1 OPTIONAL
41070-2718-SP1/19 Tyre Front 275X18 "MAXING" Sport 1 OPTIONAL
6 41070-2718-TFC055/54 Tyre Front 275X18 "TAIFA" Sport 1 OPTIONAL
41070-2718-TFC071/54 Tyre Front 275X18 "TAIFA” Pistera 1 OPTIONAL

7 41075-2717/18 Tube 2.75-3.00 X18 "IRC" 2

7 41075-2718/54 Tube 2.75-3.00 X18 "TAIFA" 2 OPTIONAL
4
41075-2718/23 Tube 2.75-3.00 X18 "MAXIONE" 2

8 41070-3018-NR1/18 Tyre Rear 300X18 "IRC" Sport 1

41070-3018-NR53/18 Tyre Rear 300X18 "IRC" Pistera 1 OPTIONAL
41070-3018-SP1/19 Tyre Rear 300X18 "MAXING" Pistera 1 OPTIONAL

8
9

5
3
1
2

CALIBER 115 26
PLATE N° 28 : FRONT HUB(FOR DISC BRAKE)
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DP-1510-03 Drum Front 1
2 39-2362-20 Bearing ball 2
3 39-0787-08 Pin cotter 1
4 30-1510-32 Collar bearing 1
5 30-1510-33 Seal oil 1

6 DP-1510-15 Plate Meter Gear 1

7 DP-1510-04 Seal oil 1
5 8 DP-1510-12 Disc 1
2
1 9 DG-1510-49 Bolt Socket 4
4
10 DD-1510-71 Case meter gear 1

2 11 DE-1510-11 Speedometer gear 1

6
7 3
12 30-1510-41 Gear meter screw 1
11
13 30-1511-19 Bushing 1
14 30-1511-18 Stopper for bushing 1
10
15 39-1013-21 O´ring 1
12
22
15 21
13 16 39-0900-12 Spring washer 1
16 18 19
17 14 17 39-0840-01 Screw pan cross 1
18
20 18 30-1510-42 Washer ´A´ 2
19 DP-1510-05 Coller (Sleeve) 1
9 20 DP-1510-21 Axle - Front 1

8 21 39-0781-11 Plain washer 1

22 39-0786-15 Nut castle 1

CALIBER 115 27
PLATE N° 29: FRONT DISC BRAKE
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DP-1510-12 Disc Front 1
2 DG-1510-89 Caliper Assly Front 1
3 DG-1510-49 Bolt Socket 4
4 DP-1510-18 Bolt Flanged 2
5 DE-1510-48 Spring Pad 1

6 DE-1510-46 Bleeder Screw 1

7 DE-1510-47 Bleeder Cap 1
6
7 8 DE-1510-37 Disc Pad Set 1
9 DE-1510-43 Insulator 1
11A
10 11A 10 DE-1510-45 Dust Cover 1
11B
12A 11B
11 DE-1510-51 Minor Kit Caliper 1
9 9 12 DE-1510-52 Major Kit Caliper 1
5
8 10
7
2
11

12A
3
6

1 12

CALIBER 115 28
PLATE N° 30 : FRONT MASTER CYLINDER(FOR DISC BRAKE)
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DE-1910-43 Major Kit Master Cylinder 1
2 DP-1910-09 Hose Brake Front 1
3 DD-1910-80 Lever Grip Front 1
4 DE-1910-11 Lever Grip RH 2
5 DE-1910-10 Banjo Bolt 4

6 DE-1910-33 Clamp Holder RH 1

8
7 DE-1910-34 Screw - Clamp RH 1
3 11A SEAL PRIMARY 8 DE-1910-31 Bolt Front Brake Lever 1
10
11B SEAL SECONDARY 9 DE-1910-32 Nut Flanged 1
4
5 13 BOOT 10 DE-1910-30 Screw - Clamp RH 2
15
5
9 11 DE-1910-42 Minor Kit Master Cylinder 1
14 11
18 12 DE-1910-24 Circlip 1
19
20 12 15 13 DE-1910-29 Reservoir Cover 1
11B 14 DE-1910-28 Diaphragm 1
2 11A 15 DE-1910-27 Boot 1
17 1
16
21
25
16 DE-2010-16 Front brake switch 1
7 22
17 DE-1910-23 return spring 1
18 DE-1910-36 Window -Master Cylinder 1
23 6
19 DE-1910-37 O´ring 1
5 24
5 20 DE-1910-38 Clip 1

4
21 DE-1910-25 Push rod 1
22 DE-1910-26 Conical Spring 1
23 DD-1911-09 Master Cylinder Assly 1
24 DE-2010-17 Cable assly front brake switch 1
25 DE-1510-15 Front Master Cylinder 1 Complete

CALIBER 115 29
PLATE N° 31: REAR HUB
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1510-19 Chain (116 Links) 1
2 DP-1510-28 Bolt (Square) 6
3 30-1510-81 Washer Lock 3
4 39-0694-15 Hex. Lock Nut 4
5 39-2240-20 Bearing Ball 1

6 30-1510-82 Seal Oil 1

2 7 DP-1510-11 Sprocket (43T) 1
1 8 39-0801-15 Nut Hex 1
5
9 39-2241-20 Bearing Ball 1
2 10 DP-1510-27 Damper - Coupling 1
6 11 12
3
4 11 30-1510-63 Drum Rear 1
8
7 12 39-2242-20 Bearing Ball 1
13 30-1511-05 Shoe Brake Assly 2
23 24 14 30-1510-69 Spring 2
22
21 15 30-1510-11 Brake Cam Assly 1
25 10 20
9
16 16 30-1510-08 Panel Rear Brake 1
17 30-1510-38 Ring´O 1
13 18
18 DD-1510-15 Lever Brake (Forged) 1
14 19 19 39-0092-04 Bolt 1
17
15
14 20 30-1510-71 Axle 1
21 30-1510-73 Collar 1
22 39-0711-11 Washer Plain 1
23 39-0800-15 Nut Castle 1
24 39-0787-08 Pin Cotter 1
25 30-1510-75 Collar Bearing 1

CALIBER 115 30
PLATE N° 32 : BRAKE PEDAL
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-0808-08 Split pin 1
2 39-0198-11 Plain Washer 2
3 DD-1910-43 Rod Brake 1
4 30-1910-38 Pin 1
5 DD-1910-12 Lever Brake 1

6 39-0805-11 Washer 1
7 39-0797-08 Pin Cotter 1
8 30-1910-31 Spring 1
5
6 9 30-1910-35 Spring 1
10 15-1910-26 Pin 1
7
30-1910-37 Pin 1 Alt to 15-1910-26

4 11 30-1910-36 Brake Adjusting Nut 1

8 12 39-0807-08 Pin Snap 2
13 39-0708-15 Nut Hex 2
2 3 14 39-0789-12 Washer Spring 2
13 1 15 DD-1510-14 Rod Torque 1

14 13
12 2
15
9
10
12
14 11

CALIBER 115 31
PLATE N° 33: HANDLE BAR
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1910-56 Grip LH 1
3 39-1074-04 Bolt 4
4 FD-1810-30 Holder Handle Upper 2
5 DD-1811-04 Handle 1

6 DD-2011-55 Control Switch LH 1

8 DD-1910-57 Grip Assly RH 1
3 9 30-1910-48 Band 2
10 10 DD-2011-03 Control Switch RH 1
4
5
9
12 39-2249-15 Nylock Nut 2
13 DD-1911-06 Lever Assly Grip LH 1
22
23 14 DL-1910-13 Lever Grip Left 1
25 15 DL-1910-14 Stud Lever Handle 2
26 27
6 24
16 36-DF19-01 Screw & Nut kit(Set A & B) 1 Ref.Page N° 49
27 12
18 DL-1910-12 Holder Left Hand 1
15 16
19 39-0725-04 Hex Bolt 1
A B
8 20 39-0198-11 Washer Plain 1

14 21 39-1184-15 Self Locking Nut 1

1 20
18 19 22 FD-1810-31 Holder Handle Lower 2
13
23 DF-1810-91 Damper Handle Upper 2
21
24 FD-1810-92 Damper Handle Lower 2
25 FD-1810-19 Washer Plain Upper 2

26 FD-1810-20 Washer Plain Lower 2

27 DD-1910-72 Boot for Lever 1

CALIBER 115 32
PLATE N° 34 : FORK FRONT
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DL-1810-80 Seal Oil 2
2 DE-1810-16 Pipe Left For Outer 1
3 DE-1810-19 Pipe Right Fork Outer 1
4 30-1810-16 Gasket 2
5 39-0778-04 Bolt 2

6 31-1810-15 Cyl. Complete Fork 2

7 DD-1810-06 Pipe Comp. Suspension Inner 2
10
8 DM-1810-08 Spring Front Fork 2
9
6 11 9 FD-1810-12 Cap Nut Special 1
21 /22 12 10 30-1810-44 Bolt Fork 2
19
13
20 11 30-1810-29 Ring´O 2
1 12 DF-1810-85 Seat Fork Spring 2
13 DD-1812-05 Holder Fork Upper 1
14 DD-1812-07 Holder Fork Under 1
7 18
8 15 39-0789-12 Washer Spring 2
17
2/3
16 39-1813-04 Bolt Small Fine 2
17 DD-1812-16 For Front 1
4 18 30-1810-09 Bearing Cone 1
14 19 DD-1810-11 Dust Seal 2
5
16 15 20 30-1810-23 Ring Snap 2

21 DD-1812-17 Damper assly LH 1

22 DD-1812-18 Damper assly RH 1

CALIBER 115 33
PLATE N° 35: PAINTED PARTS
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 52-DD80-01 Tank Fuel 1 Sin pintar
DD-1411-85 Tank fuel with Decal 1 Pearl Mica Jet Black
DD-1411-91 Tank fuel with Decal 1 Flame Red
DD-7101-Y7 Tank fuel with Decal 1 Star Blue
DD-1412-05 Tank fuel with Decal 1 Green
DD-7101-1A Tank fuel with Decal 1 Ash Black (with Golden Red Decal)
DD-7101-1B Tank fuel with Decal 1 Ash Black (with Silver Green Decal)
DD-7101-Y5 Tank fuel with Decal 1 Gun Metal Blue

2 DD-1411-86 Tank Decal LH Pearl Mica Jet Black

DD-1411-92 Tank Decal LH 1 Flame Red

1
DD-1411-98 Tank Decal LH 1 Star Blue
11/12 14 DD-1412-06 Tank Decal LH 1 Green
DD-1411-86 Tank Decal LH 1 Ash Black (with Golden Red Decal)
13 10
DD-1412-20 Tank Decal LH 1 Ash Black (with Silver Green Decal)
DD-1412-13 Tank Decal LH 1 Gun Metal Blue
2/3
8
15/16 3 DD-1411-87 Tank Decal RH Pearl Mica Jet Black

9 DD-1411-93 Tank Decal RH Flame Red

4/5 6/7
DD-1411-99 Tank Decal RH 1 Star Blue
DD-1412-07 Tank Decal RH 1 Green
DD-1411-87 Tank Decal RH 1 Ash Black (with Golden Red Decal)
DD-1412-21 Tank Decal RH 1 Ash Black (with Silver Green Decal)
DD-1411-93 Tank Decal RH 1 Flame Red
DD-1412-14 Tank Decal RH 1 Gun Metal Blue

4 52-DD01-46 Cover Side Left 1 Sin pintar

DD-1613-30 Cover Side Left with Decal 1 Pearl Mica Jet Black
DD-1613-62 Cover Side Left with Decal 1 Flame Red
DD-7302-Y7 Cover Side Left with Decal 1 Star Blue
DD-1613-82 Cover Side Left with Decal 1 Green
DD-7302-1A Cover Side Left with Decal 1 Ash Black (with Golden Red Decal)
DD-7302-1B Cover Side Left with Decal 1 Ash Black (with Silver Green Decal)

CALIBER 115 34
PLATE N° 35: PAINTED PARTS
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
DD-7302-Y5 Cover Side Left with Decal 1 Gun Metal Blue

5 52-DD01-47 Cover Side Right 1 Sin pintar

DD-1613-32 Cover Side Right With Decal Pearl Mica Jet Black
DD-1613-64 Cover Side Right With Decal 1 Flame Red
DD-7303-Y7 Cover Side Right With Decal 1 Star Blue
DD-1613-84 Cover Side Right With Decal 1 Green
DD-7303-1A Cover Side Right With Decal 1 Ash Black (with Golden Red Decal)
DD-7301-1B Cover Side Right With Decal 1 Ash Black (with Silver Green Decal)
DD-7303-Y5 Cover Side Right With Decal 1 Gun Metal Blue

1
6 DD-1613-31 Cover Side Decal LH Pearl Mica Jet Black
11/12 14 DD-1613-63 Cover Side Decal LH 1 Flame Red
DD-1613-71 Cover Side Decal LH 1 Star Blue
13 10
DD-1613-83 Cover Side Decal LH 1 Green
DD-1613-31 Cover Side Decal LH 1 Ash Black (with Golden Red Decal)
2/3
8 DD-1614-02 Cover Side Decal LH 1 Ash Black (with Silver Green Decal)
15/16 DD-1613-94 Cover Side Decal LH 1 Gun Metal Blue

9 4/5 6/7
7 DD-1613-33 Cover Side Decal RH 1 Pearl Mica Jet Black
DD-1613-65 Cover Side Decal RH 1 Flame Red
DD-1613-73 Cover Side Decal RH 1 Star Blue
DD-1613-85 Cover Side Decal RH 1 Green
DD-1613-33 Cover Side Decal RH 1 Ash Black (with Golden Red Decal)
DD-1614-04 Cover Side Decal RH 1 Ash Black (with Silver Green Decal)
DD-1613-96 Cover Side Decal RH 1 Gun Metal Blue

8 DD-1610-79 Cover Seat 1 Sin Pintar

DD-1613-34 Cover Seat With Decal 1 Pearl Mica Jet Black
DD-1613-66 Cover Seat With Decal 1 Flame Red
DD-7304-Y7 Cover Seat With Decal 1 Star Blue
DD-1613-86 Cover Seat With Decal 1 Green
DD-7304-1A Cover Seat With Decal 1 Ash Black (with Golden Red Decal)

CALIBER 115 35
PLATE N° 35: PAINTED PARTS
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
DD-7304-1B Cover Seat With Decal 1 Ash Black (with Silver Green Decal)
DD-7304-Y5 Cover Seat With Decal 1 Gun Metal Blue

9 52-DD01-48 Fender Front 1 Sin Pintar

DD-1613-37 Fender Front Pearl Mica Jet Black
DD-1613-69 Fender Front 1 Flame Red
DD-7301-Y7 Fender Front 1 Star Blue
DD-1613-89 Fender Front 1 Green
DD-7301-Y4 Fender Front 1 Ash Black (with Golden Red Decal
and Silver Green Decal)
DD-7301-Y5 Fender Front 1 Gun Metal Blue

1
11/12 14 10 DD-1811-60 Cowling 1 Sin Pintar
DD-1811-97 Cowling/Decal 1 Pearl Mica Jet Black
13 10
DD-1812-08 Cowling/Decal 1 Flame Red
DD-7305-Y7 Cowling/Decal 1 Star Blue
2/3
8 DD-1812-19 Cowling/Decal 1 Green
15/16 DD-7305-1A Cowling/Decal 1 Ash Black (with Golden Red Decal)
9 DD-7305-1B Cowling/Decal 1 Ash Black (with Silver Green Decal)
4/5 6/7
DD-7305-Y5 Cowling/Decal 1 Gun Metal Blue

11 DD-1811-98 Cowling/Decal LH 1 Pearl Mica Jet Black

DD-1812-09 Cowling/Decal LH 1 Flame Red
DD-1812-14 Cowling Decal LH 1 Star Blue
DD-1812-20 Cowling Decal LH 1 Green
DD-1811-98 Cowling/Decal LH 1 Ash Black (with Golden Red Decal)
DD-1812-26 Cowling/Decal LH 1 Ash Black (with Silver Green Decal)
DD-1812-23 Cowling/Decal LH 1 Gun Metal Blue

12 DD-1811-99 Cowling Decal RH 1 Pearl Mica Jet Black

DD-1812-10 Cowling Decal RH 1 Flame Red
DD-1812-15 Cowling Decal RH 1 Star Blue
DD-1812-21 Cowling Decal RH 1 Green

CALIBER 115 36
PLATE N° 35: PAINTED PARTS
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
DD-1811-99 Cowling Decal RH 1 Ash Black (with Golden Red Decal)
DD-1812-27 Cowling Decal RH 1 Ash Black (with Silver Green Decal)
DD-1812-24 Cowling Decal RH 1 Gun Metal Blue
13 DD-1811-96 Label ¨B Kawasaki¨ 1
14 DD-1412-11 Seatlab 1

15 DD-1613-35 Cover Seat Decal LH 1 Pearl Mica Jet Black

DD-1613-67 Cover Seat Decal LH 1 Flame Red
DD-1613-75 Cover Seat Decal LH 1 Star Blue
DD-1613-87 Cover Seat Decal LH 1 Green
DD-1613-35 Cover Seat Decal LH 1 Ash Black (with Golden Red Decal)

1
DD-1614-06 Cover Seat Decal LH 1 Ash Black (with Silver Green Decal)
11/12 14 DD-1613-98 Cover Seat Decal LH 1 Gun Metal Blue

13 10
16 DD-1613-36 Cover Seat Decal RH 1 Pearl Mica Jet Black
DD-1613-68 Cover Seat Decal RH 1 Flame Red
2/3
8 DD-1613-76 Cover Seat Decal RH 1 Star Blue
15/16 DD-1613-88 Cover Seat Decal RH 1 Green

9 DD-1613-36 Cover Seat Decal RH 1 Ash Black (with Golden Red Decal)
4/5 6/7
DD-1614-07 Cover Seat Decal RH 1 Ash Black (with Silver Green Decal)
DD-1613-99 Cover Seat Decal RH 1 Gun Metal Blue

CALIBER 115 37
PLATE N° 36 : FUEL TANK CAP & TAP ASSLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1410-24 Cap Tank 1
2 DD-1411-22 Rotor With Key 1
3 39-0761-01 Screw Pan Cross 2
4 39-2179-24 Washer 2
5 30-1410-31 Ring O 2

6 30-1410-52 Packing 1
6 7 DF-1411-66 Fuel Tap Assly 1
3 1
4 8 30-1410-39 Packing 1
5
9 30-1410-36 Packing 1
2 10 DD-1410-16 Clamp 3

11 DD-1211-63 Tube Fuel 1

12 DD-2010-21 Gauge Fuel 1
13 DD-1410-26 Tube Rubber 1
8 14 30-1410-32 Bolt 4
15 30-1410-28 Gasket For Gauge Fuel 1

15

10
12

10
11 14
10
7
13

CALIBER 115 38
PLATE N° 37: CHAIN CASE
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 30-1612-71 Rubber Pad 1
2 DD-1613-78 Case Chain Upper Assly 1 Granite Silver Painted
3 39-0219-11 Washer Plain 2
4 15-1610-69 Rubber Cap 1 Alt. To. DF-1613-56
5 39-2475-04 Flanged Bolt 2

6 39-2473-04 Flanged Bolt 2

7 DD-1613-79 Case Chain Lower Assly 1 Granite Silver Painted
8 DL-1610-23 Trim Case Chain 1

3
8 2

4 3
6

CALIBER 115 39
PLATE N° 38 : FITTINGS -PETROL TANK & SIDE COVER
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1610-22 Damper 2 To fit Side Cover on Frame
2 30-1611-69 Grommet 2 To fit Side Cover on Petrol Tank
3 39-1789-24 Washer(Nylon) 3
4 DG-1611-21 Screw 3
5 31-1611-71 Lock for side cover with keys 1

6 DD-1610-78 Damper 2 For Cover Seat

7 DD-1610-85 Pad Seat Cover 2
8 8 39-0983-08 Pin Snap 1
4
9 39-1054-11 Plain Washer 1
9 3
10 DF-1411-29 Damper 1

11 DF-1411-28 Damper 2
11

2
10

6
4
3 7
1

CALIBER 115 40
PLATE N° 39 : METER ASSEMBLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1911-29 Speedo assly with lamp 1
2 DD-1911-34 Speedometer 1
3 DD-1911-36 Meter Fuel 1
4 DD-1911-37 Cover Meter Case upper 1
5 DD-1910-94 Cover meter case lower(Black) 1

6 DD-1911-35 Tacho Meter 1

10 7 39-1943-04 Flange Bolt 2
6 8 DG-2010-40 Lamp 12V 3.4w(w/o cap) 7
4 5
9 DD-1911-33 Trip Meter Knob 1
8 3 10 DD-2010-95 Ignition Switch / Key 1
1
2
7 11 DD-1811-62 Flap Cowling 1
12 35-1610-60 Clip Nut 5
13 39-2587-01 Screw SS 5
14 39-2141-24 Washer Non-metallic 5
16 15 DD-1811-85 Bracket Cowling Upper 1
17

16 DD-1811-86 Collar 2
15 17 39-2585-01 Screw 2
11

12
14
13

CALIBER 115 41
PLATE N° 40 : CONTROL CABLES
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-1911-31 Cable Clutch 1
2 DD-1910-06 Cable Speedometer 1
3 30-1910-67 Oil Seal 1
4 DD-1910-10 Inner Cable Speedo 1
5 DD-1911-32 Cable Throttle 1

6 DD-1911-25 Cable starter 1

6
4
5
3

CALIBER 115 42
PLATE N° 41 : HEAD LAMP ASSLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-2011-41 Head Light With Lamp HS1 1
2 39-0813-02 Cr.Res.Pan hd.Taping Screw 4
3 CL-2010-23 Lamp (12V,35/35W)-HS1 1
4 39-1961-04 Bolt Flanged Small 1
5 39-0817-15 Nut Hex/Flanged 1

6 DD-1811-61 Wind shield 1

6
7 DF-1810-99 Nut well 4
1
8 39-2587-01 Screw 4
9 39-2141-24 Washer Non-metallic 4
2
10 DD-1811-83 Bracket Cowling Lower 1
8

9 11 39-0745-01 Screw Pan Cross 2

12 DD-1811-84 Bracket Fork Lower 1
13 39-2473-04 Hex.Bolt / Flange 2
14 30-2010-29 Lamp 12V-4w 1

3
7
11
5 12

10 14

4 13

CALIBER 115 43
PLATE N° 42 : TURN SIGNAL LAMP
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DD-2011-46 Lamp Assly Sig.FR.LH/Lamp 1
2 DD-2011-48 Lamp Assly Sig.FR.RH/Lamp 1
3 06-2010-83 Lamp(12 V, 10W) 4
4 DD-1811-92 Bracket Signal 1
5 39-1225-15 Hex. Nut Flange 4

6 FD-2010-33 Lens Side Indicator 4

7 DD-2011-35 Lamp Assly Sig.RE.LH/Lamp 1
8 DD-2011-37 Lamp Assly Sig.RE.RH/Lamp 1
9 DD-2011-39 Adapter RE-LH 1 N.I.
10 DD-2011-40 Adapter RE-RH 1 N.I.
6

3
4

7/8

CALIBER 115 44
PLATE N° 43 : REAR NUMBER PLATE
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DP-1611-45 Number Plate Rear 1
2 DF-1612-48 Bracket Plate 1
3 39-2476-04 Hex head Bolt/Flange 2
4 39-2475-04 Hex.bolt/flange 2
5 DP-1611-00 Bracket(Fender Rear) 1

2
1

3 4

CALIBER 115 45
PLATE N° 44 : TAIL LAMP ASSLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-0871-15 Flanget Nut 3
2 39-0211-11 Plain Washer 3
3 31-2010-01 Collar 3
4 DD-2010-11 Damper 3
5 DD-2011-22 Tail Light With Lamp 1

6 31-2010-28 Lamp 12V, 10/5w 1

7 DD-2011-56 Lens Tail Light 1
1 8 DD-2010-34 Screw For Lens(Tail Light) 2
2
4 9 39-2484-15 Flange Nut 1
10 30-2010-69 Reflector Reflex 1
6
3

9
5
10

CALIBER 115 46
PLATE N° 45 : ELECTRICAL EQUIPMENT/TPS ASSLY
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 39-1940-04 Flanged Bolt 1
2 DF-2011-40 Horn 12V DC 1
3 31-2010-79 Switch Rear Brake 1
4 DD-1910-13 Spring Brake Switch 1
5 DD-2011-58 Wiring Harness 1

1 6 31-2010-27 Battery 1
7 30-2011-04 Fuse box with damper 1
14
8 30-2010-85 Fuse 15A 2
9 DF-2011-31 Assly DC Flasher S.S. 1
2 3
13 10 31-2010-82 Capacitor Electrolytic 1

4 11 39-2473-04 Hex. Bolt / flange 1

12 DD-1811-88 Lock Assly (3 in 1) 1 N.I.
6
13 DD-1110-46 Bolt Flanged 1
9 14 39-1062-04 1

7
8
11

10
5

CALIBER 115 47
PLATE N° 46 : ACCESSORIES(LEG GUARD,SAREE GUARD & MIRRORS)
FIG. QTY/
PART. No. DESCRIPTION REMARKS
No. VEH.
1 DU-2210-03 Leg guard (OPTIONAL) 1
5 2 DD-2210-08 Mirror assly RH 1
3 DD-2210-07 Mirror assly LH 1
4 DD-2210-21 Mirror Set (2 y 3)
5 39-1940-04 Flanged Bolt 2 For Upper mounting of Leg guard
1
7 39-1608-04 Hex.soc.hd.bolt 2 Alt 39-1906-04
8 39-1814-04 Bolt Flanged 1
9 DD-2210-30 Tool Kit 1
10 DM-2210-01 Band tool kit 1

7
3 2

4 8

10

CALIBER 115 48
 KITS LIST FOR CALIBER 115
Consisting of Following Parts
SN° Kit Part N° Kit Description
Part N° Description Qty/Kit

39-0702-01 SCREW PAN CROS 1

1 36-3110-02 HOLDER FOR DRUM KIT 31-1010-48 HOLDER 1
39-0992-06 PIN DOWEL 6
31-1010-19 COLLET 4
2 36-3110-08 COLLET SEAL OIL KIT 39-1035-19 SEAL OIL 2
31-1010-45 SEAT SPRING 2
39-0738-17 CIRCLIP TYPE C 4
3 36-3110-20 CIRCLIP WASHER SET "F" TO "H" 31-1010-39 COIL SPRING 1
39-0995-11 WASHER 3
31-1010-44 PIN 2
30-1012-34 SPING 2
4 36-3110-27 BOSS KIT SET "A" TO "E" 30-2012-36 BALL STEEL 1
DD-1013-30 BOSS KICK 1
39-0855-17 CIRCLIP 1
39-1020-21 RING 'O' 2
5 36-DF10-01 O' RING KIT FOR COVER
39-1016-21 RING 'O' 1
31-1010-38 RATCHET 1
6 36-DF10-03 RATCHET & GEAR SET "K" & "L"
31-1012-18 GEAR SPUR 1
30-1910-17 NUT 2
7 36-DF19-01 CABLE ADJUSTER ASSLY KIT
30-1910-24 SCREW 2

49
 PART INDEX

PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE
No. No. No. No. No. No. No. No. No. No. No. No. No. No. No.
01-1006-10 2 5 30-1510-38 17 30 30-1910-36 11 31 31-1010-80 10 6 31-1710-12 22 23
01-1106-09 8 17 30-1510-41 12 27 30-1910-37 10 31 31-1010-81 1 7 31-1810-15 6 33
01-1701-10 7 9 30-1510-42 18 27 30-1910-38 4 31 31-1010-82 5 6 31-2010-01 3 46
01-1701-11 3 9 30-1510-63 11 30 30-1910-48 9 32 31-1010-83 9 6 31-2010-21 7 25
01-1701-11 1 10 30-1510-69 14 30 30-1910-67 3 42 31-1010-84 8 6 31-2010-27 6 47
06-2010-83 3 44 30-1510-71 20 30 30-2010-29 14 43 31-1011-04 4 2 31-2010-28 6 46
15-1610-69 4 39 30-1510-73 21 30 30-2010-69 10 46 31-1011-05 4 8 31-2010-79 3 47
15-1910-26 10 31 30-1510-75 25 30 30-2010-85 8 47 31-1011-08 10 8 31-2010-81 9 10
16-1510-66 1 26 30-1510-81 3 30 30-2011-04 7 47 31-1011-13 5 12 31-2010-82 10 47
22-1504-51 3 3 30-1510-82 6 30 31-1010-08 4 1 31-1011-17 13 6 35-1610-60 12 41
28-1011-31 5 14 30-1511-05 13 30 31-1010-14 1 18 31-1011-24 9 15 36-3110-02 4 7
28-1011-32 8 14 30-1511-18 14 27 31-1010-18 6 2 31-1011-44 14 14 36-3110-02 1 49
28-1011-34 7 14 30-1511-19 13 27 31-1010-21 1 2 31-1011-46 4 14 36-3110-08 8 2
28-1012-14 9 14 30-1611-57 8 24 31-1010-24 4 3 31-1011-48 13 14 36-3110-08 2 49
28-1210-26 2 16 30-1611-69 2 40 31-1010-25 11 3 31-1011-68 3 7 36-3110-20 8 15
30-1010-15 12 10 30-1612-71 1 39 31-1010-26 1 3 31-1011-73 4 5 36-3110-20 3 49
30-1010-86 2 8 30-1710-18 10 23 31-1010-33 6 3 31-1011-75 17 1 36-3110-27 6 15
30-1011-42 14 13 30-1710-23 18 23 31-1010-40 10 15 31-1011-91 1 7 36-3110-27 4 49
30-1012-33 13 15 30-1710-24 21 23 31-1010-41 11 15 31-1011-92 5 7 36-DF10-01 1 1
30-1410-28 15 38 30-1810-06 7 21 31-1010-47 5 7 31-1012-16 13 6 36-DF10-01 5 49
30-1410-31 5 38 30-1810-07 3 21 31-1010-51 2 7 31-1012-19 6 6 36-DF10-03 7 15
30-1410-32 14 38 30-1810-08 4 21 31-1010-54 13 8 31-1012-21 7 6 36-DF10-03 6 49
30-1410-36 9 38 30-1810-09 18 33 31-1010-55 3 8 31-1012-35 3 2 36-DF19-01 16 32
30-1410-39 8 38 30-1810-16 4 33 31-1010-56 8 10 31-1110-01 2 . 36-DF19-01 7 49
30-1410-52 6 38 30-1810-23 20 33 31-1010-61 4 12 31-1210-06 7 11 39-0092-04 19 30
30-1510-08 16 30 30-1810-29 11 33 31-1010-62 1 12 31-1210-29 5 17 39-0198-11 10 3
30-1510-11 15 30 30-1810-44 10 33 31-1010-67 12 13 31-1211-00 4 9 39-0198-11 2 18
30-1510-28 5 26 30-1810-74 2 21 31-1010-75 6 5 31-1610-07 13 17 39-0198-11 2 31
30-1510-32 4 27 30-1910-31 8 31 31-1010-76 5 5 31-1611-71 5 40 39-0198-11 20 32
50
 PART INDEX

PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE
No. No. No. No. No. No. No. No. No. No. No. No. No. No. No.
39-0211-11 3 25 39-0748-01 12 3 39-0989-17 11 6 39-1062-04 4 11 39-1920-01 2 15
39-0211-11 2 46 39-0753-01 2 19 39-0993-11 12 15 39-1062-04 10 13 39-1940-04 16 22
39-0219-11 3 39 39-0761-01 3 38 39-0994-11 1 6 39-1062-04 14 47 39-1940-04 3 24
39-0248-11 5 22 39-0778-04 5 33 39-0999-06 13 3 39-1066-04 3 10 39-1940-04 1 47
39-0248-11 6 23 39-0781-11 21 27 39-0999-06 2 9 39-1068-04 4 22 39-1940-04 5 48
39-0292-15 20 23 39-0786-15 22 27 39-0999-06 8 12 39-1068-04 14 22 39-1943-04 7 41
39-0422-15 5 24 39-0787-08 10 24 39-0999-06 19 13 39-1070-01 8 3 39-1959-04 20 16
39-0454-11 17 23 39-0787-08 3 27 39-0999-06 4 19 39-1074-04 7 12 39-1961-04 4 43
39-0553-02 16 23 39-0787-08 24 30 39-1000-06 12 1 39-1074-04 3 32 39-1981-04 16 6
39-0694-15 4 30 39-0789-12 8 23 39-1000-06 1 4 39-1075-04 11 10 39-2040-21 2 3
39-0702-01 5 2 39-0789-12 14 31 39-1003-20 5 20 39-1075-04 18 13 39-2134-21 16 13
39-0702-01 7 10 39-0789-12 15 33 39-1008-20 6 10 39-1078-01 1 19 39-2141-24 14 41
39-0703-11 10 10 39-0797-08 7 31 39-1013-21 5 19 39-1080-19 5 10 39-2141-24 9 43
39-0708-15 11 23 39-0800-15 23 30 39-1013-21 15 27 39-1184-15 21 32 39-2145-15 4 18
39-0708-15 13 31 39-0801-15 8 30 39-1017-21 14 1 39-1225-15 6 22 39-2147-04 10 12
39-0711-11 18 17 39-0805-11 6 31 39-1018-21 14 6 39-1225-15 5 44 39-2179-24 4 38
39-0711-11 19 23 39-0807-08 12 31 39-1019-21 2 12 39-1608-04 7 48 39-2222-04 1 25
39-0711-11 9 25 39-0808-08 1 31 39-1019-21 3 16 39-1612-11 16 1 39-2240-20 5 30
39-0711-11 22 30 39-0813-02 2 43 39-1021-21 5 1 39-1659-11 7 20 39-2241-20 9 30
39-0712-15 1 23 39-0817-15 10 25 39-1023-04 3 11 39-1671-21 4 13 39-2242-20 12 30
39-0714-11 3 23 39-0817-15 5 43 39-1028-21 6 20 39-1673-04 3 1 39-2249-15 12 32
39-0725-04 19 32 39-0830-01 9 17 39-1041-19 13 13 39-1673-04 5 13 39-2311-04 9 22
39-0732-12 9 3 39-0840-01 17 27 39-1042-19 4 20 39-1680-04 16 17 39-2362-20 2 27
39-0732-12 3 18 39-0871-15 1 46 39-1043-19 4 10 39-1727-11 5 11 39-2403-20 12 14
39-0737-12 2 23 39-0900-12 16 27 39-1046-19 11 13 39-1789-24 11 17 39-2425-11 15 18
39-0743-01 12 18 39-0980-04 10 14 39-1050-06 2 10 39-1789-24 3 40 39-2470-04 15 22
39-0745-01 14 20 39-0983-08 8 40 39-1053-15 7 5 39-1813-04 16 33 39-2473-04 10 20
39-0745-01 11 43 39-0985-17 5 4 39-1053-15 11 14 39-1814-04 8 48 39-2473-04 6 39
39-0746-01 5 8 39-0986-08 3 17 39-1054-11 9 40 39-1850-04 6 18 39-2473-04 13 43
51
 PART INDEX

PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE
No. No. No. No. No. No. No. No. No. No. No. No. No. No. No.
39-2474-04 8 8 52-DD03-46 3 13 DD-1013-50 7 1 DD-1110-05 16 20 DD-1211-79 19 16
39-2474-04 1 15 52-DD80-01 1 34 DD-1013-51 11 1 DD-1110-06 9 20 DD-1211-81 6 13
39-2475-04 5 39 CL-2010-23 3 43 DD-1013-89 6 14 DD-1110-18 12 20 DD-1410-16 10 38
39-2475-04 4 45 DD-1010-07 2 4 DD-1014-23 8 9 DD-1110-27 3 20 DD-1410-24 1 38
39-2476-04 3 45 DD-1010-10 13 1 DD-1014-24 9 12 DD-1110-39 1 20 DD-1410-26 13 38
39-2479-15 13 22 DD-1010-14 4 4 DD-1014-25 5 18 DD-1110-42 8 20 DD-1411-22 2 38
39-2481-04 1 21 DD-1010-50 9 13 DD-1014-28 8 18 DD-1110-46 13 47 DD-1411-85 1 34
39-2481-04 15 23 DD-1010-57 7 13 DD-1014-39 9 1 DD-1210-03 2 11 DD-1411-86 2 34
39-2483-04 4 25 DD-1010-58 6 12 DD-1014-40 7 2 DD-1210-06 6 13 DD-1411-86 2 34
39-2484-15 9 46 DD-1010-60 17 13 DD-1014-41 5 3 DD-1210-09 6 11 DD-1411-87 3 34
39-2571-04 12 22 DD-1010-71 9 8 DD-1014-44 15 1 DD-1210-94 8 13 DD-1411-87 3 34
39-2584-01 9 18 DD-1010-77 6 8 DD-1014-45 3 4 DD-1211-20 1 11 DD-1411-91 1 34
39-2585-01 17 41 DD-1010-79 15 14 DD-1014-45-025/47 3 4 DD-1211-42 1 16 DD-1411-92 2 34
39-2587-01 13 41 DD-1010-92 2 6 DD-1014-45-050/47 3 4 DD-1211-45 1 17 DD-1411-93 3 34
39-2587-01 8 43 DD-1010-97 5 15 DD-1014-45-075/47 3 4 DD-1211-63 11 38 DD-1411-93 3 34
39-2593-11 3 14 DD-1011-06 7 8 DD-1014-45-100/47 3 4 DD-1211-64 4 16 DD-1411-98 2 34
41070-2718-NF21/18 6 26 DD-1011-17 3 5 DD-1014-45-STD/47 3 4 DD-1211-65 5 16 DD-1411-99 3 34
41070-2718-NR53/18 6 26 DD-1011-34 9 2 DD-1014-47 8 5 DD-1211-66 6 16 DD-1412-05 1 34
41070-2718-SP1/19 6 26 DD-1011-35 10 2 DD-1014-49 2 14 DD-1211-67 7 16 DD-1412-06 2 34
41070-2718-TFC055/54 6 26 DD-1011-36 12 6 DD-1014-57 1 14 DD-1211-68 8 16 DD-1412-07 3 34
41070-2718-TFC071/54 6 26 DD-1012-54 3 15 DD-1014-59 1 13 DD-1211-69 9 16 DD-1412-11 14 37
41070-3018-NR1/18 8 26 DD-1012-75 6 9 DD-1014-63 7 3 DD-1211-70 10 16 DD-1412-13 2 34
41070-3018-NR53/18 8 26 DD-1012-98 11 8 DD-1014-64 3 12 DD-1211-71 11 16 DD-1412-14 3 34
41070-3018-SP1/19 8 26 DD-1013-04 1 8 DD-1014-65 13 10 DD-1211-72 12 16 DD-1412-20 2 34
41075-2717/18 7 26 DD-1013-18 15 20 DD-1014-66 9 9 DD-1211-73 13 16 DD-1412-21 3 34
41075-2718/23 7 26 DD-1013-25 15 13 DD-1014-69 10 1 DD-1211-74 14 16 DD-1510-14 15 31
41075-2718/54 7 26 DD-1013-27 4 15 DD-1014-70 2 1 DD-1211-75 15 16 DD-1510-15 18 30
52-DD01-46 4 34 DD-1013-30 13 15 DD-1014-71 3 13 DD-1211-76 16 16 DD-1510-19 1 30
52-DD01-47 5 35 DD-1013-47 6 1 DD-1014-75 9 5 DD-1211-77 17 16 DD-1510-71 10 27
52
 PART INDEX

PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE
No. No. No. No. No. No. No. No. No. No. No. No. No. No. No.
DD-1610-13 2 25 DD-1613-56 2 22 DD-1613-99 16 37 DD-1812-14 11 36 DD-1911-35 6 41
DD-1610-22 1 40 DD-1613-59 8 21 DD-1614-02 6 35 DD-1812-15 12 36 DD-1911-36 3 41
DD-1610-28 11 18 DD-1613-60 14 23 DD-1614-04 7 35 DD-1812-16 17 33 DD-1911-37 4 41
DD-1610-38 5 25 DD-1613-61 13 23 DD-1614-06 15 37 DD-1812-17 21 33 DD-2010-11 4 46
DD-1610-51 6 25 DD-1613-62 4 34 DD-1614-07 16 37 DD-1812-18 22 33 DD-2010-21 12 38
DD-1610-63 6 24 DD-1613-63 6 35 DD-1710-13 12 23 DD-1812-19 10 36 DD-2010-34 8 46
DD-1610-71 16 18 DD-1613-64 5 35 DD-1710-26 4 23 DD-1812-20 11 36 DD-2010-95 10 41
DD-1610-78 6 40 DD-1613-65 7 35 DD-1810-06 7 33 DD-1812-21 12 36 DD-2011-03 10 32
DD-1610-79 8 35 DD-1613-66 8 35 DD-1810-11 19 33 DD-1812-23 11 36 DD-2011-22 5 46
DD-1610-85 7 40 DD-1613-67 15 37 DD-1811-04 5 32 DD-1812-24 12 37 DD-2011-35 7 44
DD-1613-29 11 25 DD-1613-68 16 37 DD-1811-60 10 36 DD-1812-26 11 36 DD-2011-37 8 44
DD-1613-30 4 34 DD-1613-69 9 36 DD-1811-61 6 43 DD-1812-27 12 37 DD-2011-39 9 44
DD-1613-31 6 35 DD-1613-71 6 35 DD-1811-62 11 41 DD-1910-06 2 42 DD-2011-40 10 44
DD-1613-31 6 35 DD-1613-73 7 35 DD-1811-83 10 43 DD-1910-10 4 42 DD-2011-41 1 43
DD-1613-32 5 35 DD-1613-75 15 37 DD-1811-84 12 43 DD-1910-12 5 31 DD-2011-46 1 44
DD-1613-33 7 35 DD-1613-76 16 37 DD-1811-85 15 41 DD-1910-13 4 47 DD-2011-48 2 44
DD-1613-33 7 35 DD-1613-78 2 39 DD-1811-86 16 41 DD-1910-43 3 31 DD-2011-55 6 32
DD-1613-34 8 35 DD-1613-79 7 39 DD-1811-88 12 47 DD-1910-56 1 32 DD-2011-56 7 46
DD-1613-35 15 37 DD-1613-80 7 24 DD-1811-92 4 44 DD-1910-57 8 32 DD-2011-57 11 20
DD-1613-35 15 37 DD-1613-82 4 34 DD-1811-96 13 37 DD-1910-72 27 32 DD-2011-58 5 47
DD-1613-36 16 37 DD-1613-83 6 35 DD-1811-97 10 36 DD-1910-80 3 29 DD-2110-21 10 18
DD-1613-36 16 37 DD-1613-84 5 35 DD-1811-98 11 36 DD-1910-94 5 41 DD-2210-07 3 48
DD-1613-37 9 36 DD-1613-85 7 35 DD-1811-98 11 36 DD-1911-06 13 32 DD-2210-08 2 48
DD-1613-38 9 24 DD-1613-86 8 35 DD-1811-99 12 36 DD-1911-09 23 29 DD-2210-21 4 48
DD-1613-44 1 22 DD-1613-87 15 37 DD-1811-99 12 37 DD-1911-25 6 42 DD-2210-27 9 21
DD-1613-51 3 22 DD-1613-88 16 37 DD-1812-05 13 33 DD-1911-29 1 41 DD-2210-30 9 48
DD-1613-52 10 22 DD-1613-89 9 36 DD-1812-07 14 33 DD-1911-31 1 42 DD-7101-1A 1 34
DD-1613-53 11 22 DD-1613-94 6 35 DD-1812-08 10 36 DD-1911-32 5 42 DD-7101-1B 1 34
DD-1613-54 7 22 DD-1613-96 7 35 DD-1812-09 11 36 DD-1911-33 9 41 DD-7101-Y7 1 34
53
 PART INDEX

PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE PART FIG. PAGE
No. No. No. No. No. No. No. No. No. No. No. No. No. No. No.
DD-7301-1B 5 35 DE-1810-16 2 33 DF-1612-48 2 45 DM-1011-14 12 6 DP-1910-09 2 29
DD-7301-Y4 9 36 DE-1810-19 3 33 DF-1612-49 2 24 DM-1011-15 15 6 DU-1010-45 9 15
DD-7301-Y5 9 36 DE-1910-10 5 29 DF-1810-52 6 21 DM-1210-03 2 17 DU-1010-50 14 15
DD-7301-Y7 9 36 DE-1910-11 4 29 DF-1810-85 12 33 DM-1210-04 7 17 DU-2210-03 1 48
DD-7302-1A 4 34 DE-1910-23 17 29 DF-1810-90 5 21 DM-1210-06 4 17 FD-1810-12 9 33
DD-7302-1B 4 34 DE-1910-24 12 29 DF-1810-91 23 32 DM-1210-07 6 17 FD-1810-19 25 32
DD-7302-Y5 4 35 DE-1910-25 21 29 DF-1810-99 7 43 DM-1210-10 12 17 FD-1810-20 26 32
DD-7302-Y7 4 34 DE-1910-26 22 29 DF-2011-31 9 47 DM-1210-14 14 17 FD-1810-30 4 32
DD-7303-1A 5 35 DE-1910-27 15 29 DF-2011-40 2 47 DM-1210-26 15 17 FD-1810-31 22 32
DD-7303-Y5 5 35 DE-1910-28 14 29 DG-1011-29 12 8 DM-1610-09 8 25 FD-1810-92 24 32
DD-7303-Y7 5 35 DE-1910-29 13 29 DG-1014-98 5 9 DM-1810-08 8 33 FD-2010-33 6 44
DD-7304-1A 8 35 DE-1910-30 10 29 DG-1510-49 9 27 DM-2210-01 17 17 TE-0066-02 13 20
DD-7304-1B 8 36 DE-1910-31 8 29 DG-1510-49 3 28 DM-2210-01 10 48
DD-7304-Y5 8 36 DE-1910-32 9 29 DG-1510-89 2 28 DP-1013-09 7 18
DD-7304-Y7 8 35 DE-1910-33 6 29 DG-1611-21 4 40 DP-1013-67 4 15
DD-7305-1A 10 36 DE-1910-34 7 29 DG-1611-24 11 24 DP-1510-03 1 27
DD-7305-1B 10 36 DE-1910-36 18 29 DG-1611-66 10 17 DP-1510-04 7 27
DD-7305-Y5 10 36 DE-1910-37 19 29 DG-2010-40 8 41 DP-1510-05 19 27
DD-7305-Y7 10 36 DE-1910-38 20 29 DH-1510-24 2 26 DP-1510-11 7 30
DE-1510-11 11 27 DE-1910-42 11 29 DH-1510-25 3 26 DP-1510-12 8 27
DE-1510-15 25 29 DE-1910-43 1 29 DH-1610-59 5 23 DP-1510-12 1 28
DE-1510-30 4 26 DE-2010-16 16 29 DH-1611-55 13 18 DP-1510-15 6 27
DE-1510-37 8 28 DE-2010-17 24 29 DH-1611-57 14 18 DP-1510-18 4 28
DE-1510-43 9 28 DF-1010-55 2 2 DL-1610-23 8 39 DP-1510-19 2 26
DE-1510-45 10 28 DF-1210-03 3 19 DL-1810-80 1 33 DP-1510-20 3 26
DE-1510-46 6 28 DF-1411-28 11 40 DL-1910-12 18 32 DP-1510-21 20 27
DE-1510-47 7 28 DF-1411-29 10 40 DL-1910-13 14 32 DP-1510-27 10 30
DE-1510-48 5 28 DF-1411-66 7 38 DL-1910-14 15 32 DP-1510-28 2 30
DE-1510-52 12 28 DF-1611-02 4 24 DM-1010-52 14 10 DP-1611-45 1 45
54
