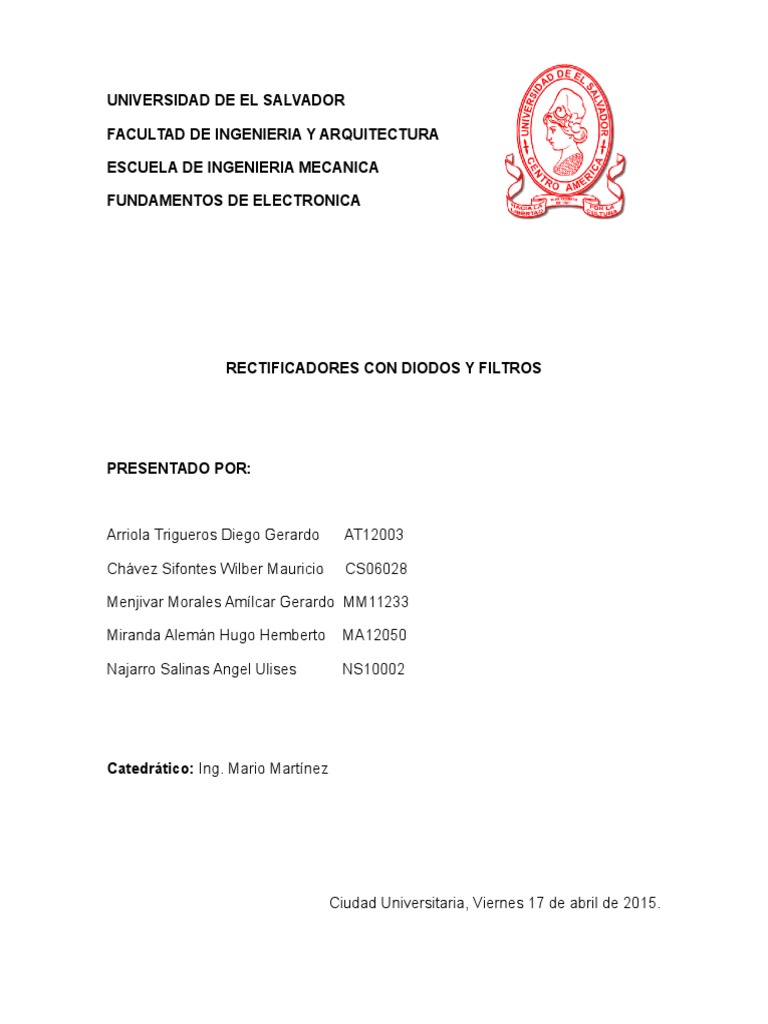

Rectificadores Con Diodos y Filtros
Cargado por
Angel NajarroRectificadores Con Diodos y Filtros
Cargado por
Angel NajarroCommon questions
Con tecnología de IAThe capacitor filter plays a crucial role in a rectifier circuit by reducing the ripple voltage present in the pulsating DC output. It charges up to the peak voltage during the rectifier's conductive cycle and discharges slowly through the load during the non-conductive cycle, thereby smoothing the output voltage. This results in a more constant DC level, improving the quality and stability of the output. The effectiveness of this smoothing is determined by the RC time constant of the circuit: a larger capacitance or load resistance leads to less ripple .
A full-wave bridge rectifier uses four diodes arranged in a bridge configuration to better utilize both halves of the AC input cycle, unlike the two-diode configuration which only uses one half of the input cycle at a time. This arrangement allows for full-wave rectification without a center-tap transformer, which makes it more efficient and capable of providing a higher average output voltage. Moreover, the bridge rectifier can handle more load current and minimizes the peak inverse voltage that individual diodes must withstand, improving durability and performance .
In power supply design, the ripple factor is a measure of the AC components within the DC output of the rectification process, often expressed as a percentage of the DC voltage. A lower ripple factor implies a smoother DC output, crucial for the efficient operation of electronic devices. The filter capacitor mitigates the ripple factor by charging to peak voltage levels and discharging during voltage drops, thus maintaining a steadier output voltage. The larger the capacitance, the lower the ripple factor, enhancing the performance and reliability of the power supply system .
Matching theoretical and practical values in rectifier circuits is critical to validate the design and ensure that components function as expected under real-world conditions. Discrepancies might indicate flaws in assumptions, calculation errors, or component inefficiencies. Confirming alignment between simulation and physical results enhances reliability, performance predictability, and safety, reducing the risk of device failure and optimizing the design process. It is particularly vital for achieving the expected rectification and filtering performance needed in power supply applications .
When selecting a transformer for a rectifier circuit, key considerations include ensuring the transformer can handle the maximum required voltage and current, providing adequate isolation and satisfying peak secondary current demands. It must also have the correct turns ratio to deliver the desired output voltage after rectification, considering diode voltage drops. Furthermore, the transformer should be designed to manage the power loss and thermal performance to avoid overheating and ensure efficiency. These factors ensure the transformer delivers a stable and reliable power supply .
The forward voltage drop of diodes in a rectifier circuit reduces the actual output DC voltage and can impact efficiency, particularly in low-voltage applications. This drop, typically around 0.7V per diode, can be significant in bridge rectifiers since multiple diodes are involved in the conduction path. To mitigate this, Schottky diodes, which have lower forward voltage drops, can be used. Additionally, incorporating low-loss designs and selecting diodes tailored to the circuit requirements can minimize these effects, ensuring higher efficiency and better performance .
A full-wave rectifier converts the entire input waveform into a single polarity output (either all positive or all negative), whereas a half-wave rectifier only allows one half of the input waveform (positive or negative) to pass through. Consequently, the output voltage of a full-wave rectifier is smoother and has a higher average voltage than a half-wave rectifier. For instance, the output of a full-wave rectifier is about twice that of a simple half-wave rectifier due to its utilization of both halves of the input waveform .
A full-wave rectifier has a higher rectification efficiency than a half-wave rectifier because it utilizes both halves of the AC input signal to produce DC output, resulting in a continuous flow of current and less energy loss. This increases the average DC voltage output, enhancing the overall efficiency. The ability to produce smoother and higher average output voltage also means better conversion of AC power into usable DC power, thus improving efficiency .
Ripple voltage can be minimized by increasing the filter capacitor's capacitance, using multi-stage filtering, and choosing appropriate load resistance. This is achieved by the capacitor storing charge during peaks and releasing it during voltage drops. Such measures reduce fluctuations, resulting in a more constant DC output. Minimizing ripple is significant because it ensures smoother operation of electronic devices, prevents potential damage from cyclic voltage variations, and enhances overall circuit performance and efficiency .
A load resistance affects a capacitor filter's performance by influencing the discharge rate of the capacitor. With a fixed capacitance, a higher load resistance extends the discharge time, reducing the ripple and resulting in a steadier voltage output. Conversely, a lower load resistance increases the discharge rate, potentially causing a higher ripple frequency and less smoothing of the rectified voltage. Therefore, for optimal performance, the load resistance should be matched strategically to the capacitance to maintain desirable smoothing levels in the output voltage .
