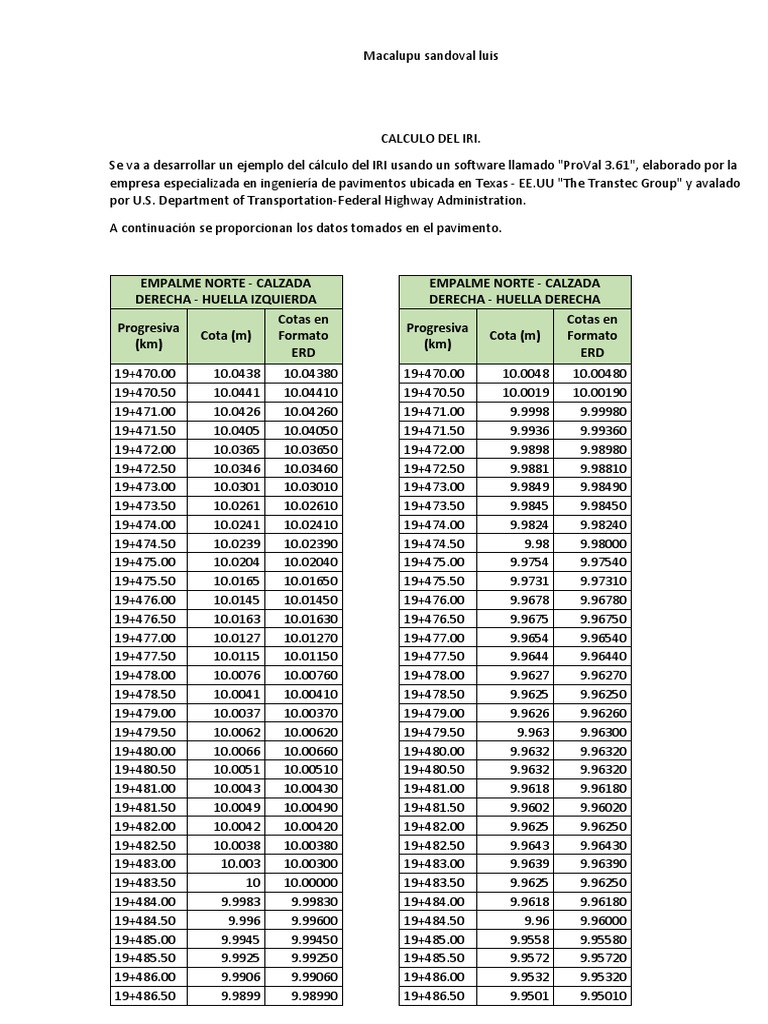

CALCULO DEL IRI.

Se va a desarrollar un ejemplo del cálculo del IRI usando un software llamado "ProVal 3.61", elaborado por la
empresa especializada en ingeniería de pavimentos ubicada en Texas - EE.UU "The Transtec Group" y avalado
por U.S. Department of Transportation-Federal Highway Administration.

A continuación se proporcionan los datos tomados en el pavimento.

EMPALME NORTE - CALZADA EMPALME NORTE - CALZADA

DERECHA - HUELLA IZQUIERDA DERECHA - HUELLA DERECHA
Cotas en Cotas en
Progresiva Progresiva
Cota (m) Formato Cota (m) Formato
(km) (km)
ERD ERD
19+470.00 10.0438 10.04380 19+470.00 10.0048 10.00480
19+470.50 10.0441 10.04410 19+470.50 10.0019 10.00190
19+471.00 10.0426 10.04260 19+471.00 9.9998 9.99980
19+471.50 10.0405 10.04050 19+471.50 9.9936 9.99360
19+472.00 10.0365 10.03650 19+472.00 9.9898 9.98980
19+472.50 10.0346 10.03460 19+472.50 9.9881 9.98810
19+473.00 10.0301 10.03010 19+473.00 9.9849 9.98490
19+473.50 10.0261 10.02610 19+473.50 9.9845 9.98450
19+474.00 10.0241 10.02410 19+474.00 9.9824 9.98240
19+474.50 10.0239 10.02390 19+474.50 9.98 9.98000
19+475.00 10.0204 10.02040 19+475.00 9.9754 9.97540
19+475.50 10.0165 10.01650 19+475.50 9.9731 9.97310
19+476.00 10.0145 10.01450 19+476.00 9.9678 9.96780
19+476.50 10.0163 10.01630 19+476.50 9.9675 9.96750
19+477.00 10.0127 10.01270 19+477.00 9.9654 9.96540
19+477.50 10.0115 10.01150 19+477.50 9.9644 9.96440
19+478.00 10.0076 10.00760 19+478.00 9.9627 9.96270
19+478.50 10.0041 10.00410 19+478.50 9.9625 9.96250
19+479.00 10.0037 10.00370 19+479.00 9.9626 9.96260
19+479.50 10.0062 10.00620 19+479.50 9.963 9.96300
19+480.00 10.0066 10.00660 19+480.00 9.9632 9.96320
19+480.50 10.0051 10.00510 19+480.50 9.9632 9.96320
19+481.00 10.0043 10.00430 19+481.00 9.9618 9.96180
19+481.50 10.0049 10.00490 19+481.50 9.9602 9.96020
19+482.00 10.0042 10.00420 19+482.00 9.9625 9.96250
19+482.50 10.0038 10.00380 19+482.50 9.9643 9.96430
19+483.00 10.003 10.00300 19+483.00 9.9639 9.96390
19+483.50 10 10.00000 19+483.50 9.9625 9.96250
19+484.00 9.9983 9.99830 19+484.00 9.9618 9.96180
19+484.50 9.996 9.99600 19+484.50 9.96 9.96000
19+485.00 9.9945 9.99450 19+485.00 9.9558 9.95580
19+485.50 9.9925 9.99250 19+485.50 9.9572 9.95720
19+486.00 9.9906 9.99060 19+486.00 9.9532 9.95320
19+486.50 9.9899 9.98990 19+486.50 9.9501 9.95010
19+487.00 9.9889 9.98890 19+487.00 9.9509 9.95090
19+487.50 9.9884 9.98840 19+487.50 9.9509 9.95090
19+488.00 9.9894 9.98940 19+488.00 9.9534 9.95340
19+488.50 9.9885 9.98850 19+488.50 9.9512 9.95120
19+489.00 9.9873 9.98730 19+489.00 9.9526 9.95260
19+489.50 9.9848 9.98480 19+489.50 9.9523 9.95230
19+490.00 9.9827 9.98270 19+490.00 9.9521 9.95210
19+490.50 9.9823 9.98230 19+490.50 9.9483 9.94830
19+491.00 9.9801 9.98010 19+491.00 9.9473 9.94730
19+491.50 9.9769 9.97690 19+491.50 9.9433 9.94330
19+492.00 9.9749 9.97490 19+492.00 9.9416 9.94160
19+492.50 9.9711 9.97110 19+492.50 9.9386 9.93860
19+493.00 9.9709 9.97090 19+493.00 9.9346 9.93460
19+493.50 9.9668 9.96680 19+493.50 9.9351 9.93510
19+494.00 9.9654 9.96540 19+494.00 9.9305 9.93050
19+494.50 9.9621 9.96210 19+494.50 9.9291 9.92910
19+495.00 9.9595 9.95950 19+495.00 9.9265 9.92650
19+495.50 9.9588 9.95880 19+495.50 9.925 9.92500
19+496.00 9.9564 9.95640 19+496.00 9.9229 9.92290
19+496.50 9.9564 9.95640 19+496.50 9.924 9.92400
19+497.00 9.955 9.95500 19+497.00 9.9224 9.92240
19+497.50 9.9544 9.95440 19+497.50 9.9208 9.92080
19+498.00 9.9545 9.95450 19+498.00 9.9176 9.91760
19+498.50 9.9535 9.95350 19+498.50 9.9174 9.91740
19+499.00 9.9527 9.95270 19+499.00 9.919 9.91900
19+499.50 9.9504 9.95040 19+499.50 9.9172 9.91720
19+500.00 9.9492 9.94920 19+500.00 9.9145 9.91450
19+500.50 9.9542 9.95420 19+500.50 9.9131 9.91310
19+501.00 9.9571 9.95710 19+501.00 9.9134 9.91340
19+501.50 9.9562 9.95620 19+501.50 9.9144 9.91440
19+502.00 9.9576 9.95760 19+502.00 9.9148 9.91480
19+502.50 9.952 9.95200 19+502.50 9.9135 9.91350
19+503.00 9.9508 9.95080 19+503.00 9.9136 9.91360
19+503.50 9.9476 9.94760 19+503.50 9.9118 9.91180
19+504.00 9.9448 9.94480 19+504.00 9.9119 9.91190
19+504.50 9.9418 9.94180 19+504.50 9.9072 9.90720
19+505.00 9.9395 9.93950 19+505.00 9.9053 9.90530
19+505.50 9.9393 9.93930 19+505.50 9.9024 9.90240
19+506.00 9.9375 9.93750 19+506.00 9.8983 9.89830
19+506.50 9.9355 9.93550 19+506.50 9.8978 9.89780
19+507.00 9.9352 9.93520 19+507.00 9.9005 9.90050
19+507.50 9.936 9.93600 19+507.50 9.8996 9.89960
19+508.00 9.9366 9.93660 19+508.00 9.8998 9.89980
19+508.50 9.9377 9.93770 19+508.50 9.9004 9.90040
19+509.00 9.939 9.93900 19+509.00 9.9025 9.90250
19+509.50 9.9387 9.93870 19+509.50 9.9033 9.90330
19+510.00 9.9386 9.93860 19+510.00 9.9047 9.90470
19+510.50 9.9374 9.93740 19+510.50 9.9055 9.90550
19+511.00 9.9405 9.94050 19+511.00 9.9085 9.90850
19+511.50 9.941 9.94100 19+511.50 9.9112 9.91120
19+512.00 9.9397 9.93970 19+512.00 9.9093 9.90930
19+512.50 9.9366 9.93660 19+512.50 9.9117 9.91170
19+513.00 9.9368 9.93680 19+513.00 9.9112 9.91120
19+513.50 9.9326 9.93260 19+513.50 9.9118 9.91180
19+514.00 9.9326 9.93260 19+514.00 9.9112 9.91120
19+514.50 9.9315 9.93150 19+514.50 9.9126 9.91260
19+515.00 9.9313 9.93130 19+515.00 9.9105 9.91050
19+515.50 9.9288 9.92880 19+515.50 9.9076 9.90760
19+516.00 9.9281 9.92810 19+516.00 9.9069 9.90690
19+516.50 9.9262 9.92620 19+516.50 9.9053 9.90530
19+517.00 9.9224 9.92240 19+517.00 9.9023 9.90230
19+517.50 9.922 9.92200 19+517.50 9.9001 9.90010
19+518.00 9.9137 9.91370 19+518.00 9.8997 9.89970
19+518.50 9.9114 9.91140 19+518.50 9.8954 9.89540
19+519.00 9.9088 9.90880 19+519.00 9.8941 9.89410
19+519.50 9.9052 9.90520 19+519.50 9.8904 9.89040
19+520.00 9.9012 9.90120 19+520.00 9.8882 9.88820
19+520.50 9.8982 9.89820 19+520.50 9.883 9.88300
19+521.00 9.8937 9.89370 19+521.00 9.8811 9.88110
19+521.50 9.8925 9.89250 19+521.50 9.8775 9.87750
19+522.00 9.8862 9.88620 19+522.00 9.8724 9.87240
19+522.50 9.882 9.88200 19+522.50 9.8693 9.86930
19+523.00 9.8806 9.88060 19+523.00 9.8682 9.86820
19+523.50 9.8749 9.87490 19+523.50 9.8652 9.86520
19+524.00 9.8718 9.87180 19+524.00 9.8607 9.86070
19+524.50 9.8696 9.86960 19+524.50 9.8562 9.85620
19+525.00 9.8654 9.86540 19+525.00 9.8539 9.85390
19+525.50 9.8614 9.86140 19+525.50 9.8524 9.85240
19+526.00 9.8539 9.85390 19+526.00 9.8518 9.85180
19+526.50 9.8504 9.85040 19+526.50 9.85 9.85000
19+527.00 9.8503 9.85030 19+527.00 9.8462 9.84620
19+527.50 9.8441 9.84410 19+527.50 9.8456 9.84560
19+528.00 9.8454 9.84540 19+528.00 9.8412 9.84120
19+528.50 9.8486 9.84860 19+528.50 9.8426 9.84260
19+529.00 9.8447 9.84470 19+529.00 9.8422 9.84220
19+529.50 9.845 9.84500 19+529.50 9.8428 9.84280
19+530.00 9.8418 9.84180 19+530.00 9.8403 9.84030
19+530.50 9.8391 9.83910 19+530.50 9.8408 9.84080
19+531.00 9.8356 9.83560 19+531.00 9.8388 9.83880
19+531.50 9.8355 9.83550 19+531.50 9.8362 9.83620
19+532.00 9.8349 9.83490 19+532.00 9.8367 9.83670
19+532.50 9.8328 9.83280 19+532.50 9.8335 9.83350
19+533.00 9.8313 9.83130 19+533.00 9.834 9.83400
19+533.50 9.826 9.82600 19+533.50 9.8323 9.83230
19+534.00 9.8205 9.82050 19+534.00 9.8323 9.83230
19+534.50 9.8144 9.81440 19+534.50 9.8289 9.82890
19+535.00 9.8056 9.80560 19+535.00 9.8197 9.81970
Primero se creara un "Block de Notas", y se ingresarán las cotas topograficas en formato "ERD", particularidades
de medida e información de los alineamientos topograficos.

Se abre el sofware y creamos un nuevo proyecto seleccionando NEW

UNA VEZ SELECCIONADO NEW, APAECERA LA SIGUIENTE VENTANA, Y NOS VAMOS ALCOMADO (add files) que
significa añadir archivo.

Seleccionamos el archivo donde guardamos nuestro datos.

 Después de hacer clic en "Next", se activará la siguiente ventana y se hará clic en "Finish"

Después de hacer clic en "Finish", se abrirá la siguiente ventana y se hará clic en el cuadro "Profile 1" que se
encuentra en la mano izquierda y automáticamente se proyectará el perfil del levantamiento topográfico.
Después se seleccionará "Analysis" y se hará clic en "Ride Quality".
Después de seleccionar "Ride Quality", se abrirá la siguiente ventana y se seleccionará el cuadro de "Profile" y se
hará clic en el cuadro de "Analysis" que se encuentra en la mano derecha.

Después de haber hecho clic en el cuadro de "Analysis", aparecerá el resultado del IRI en m/km
Después se deberá guardar el cálculo en donde se crea conveniente.

De los datos obtenidos del software tenemos que los siguientes resultados:

Epalme Norte-Calzada Derecha

H. Izquierda H. Derecha

3.33 m/km 3.21 m/km

3.27 m/km

En conclusión el INDICE DE RUGOSIDAD INTERNACIONAL EN ESTE PAVIMENTO ES DE 3.27 m/km
