HP P1006

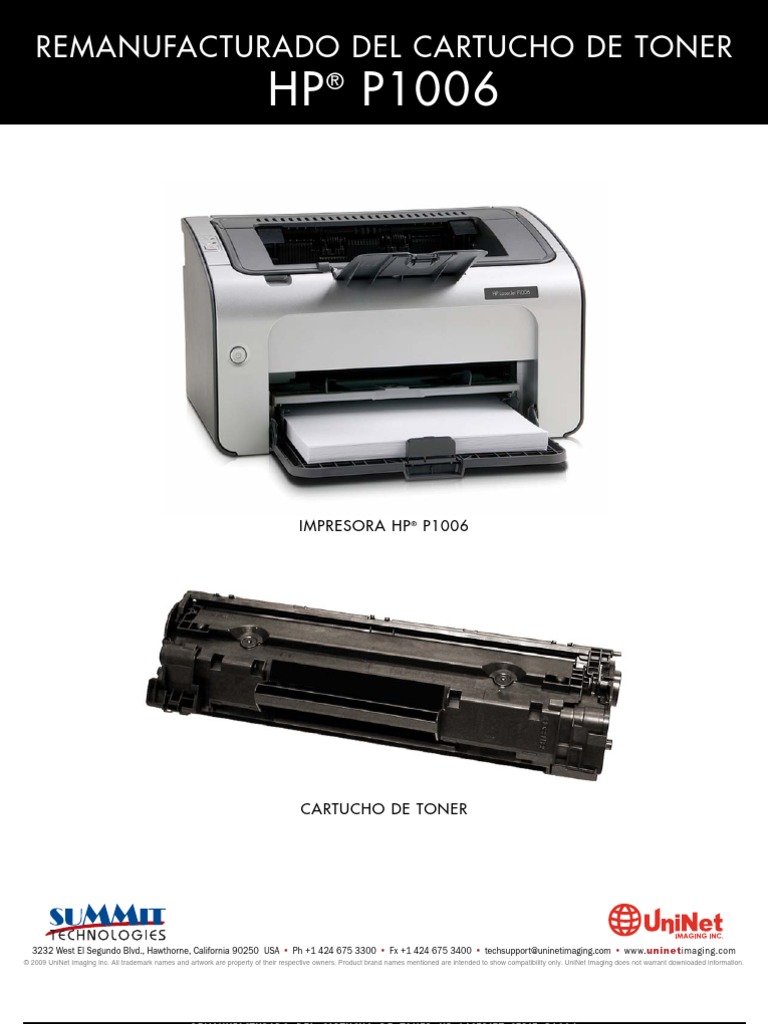

IMPRESORA HP P1006
CARTUCHO DE TONER
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
SUMINISTROS REQUERIDOS 1. Tner para HP P1005/1006 2. Nuevo cilindro OPC 3. Lmina de Limpieza (nica para esta serie) 4. Lmina dosificadora (nica para esta serie) 5. Rodillo Magntico (nico para esta serie) 6. Sello (nico para esta serie) 7. Q-tips o copitos de algodn 8. Alcohol Isoproplico 9. Polvo lubrificante Methuselah 10. Grasa Conductiva
HERRAMIENTAS 1. Destornillador Phillips mediano 2. Destornillador plano pequeo 3. Pinzas de puntas 4. Juego de destornilladores de relojero
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
Existe una gran similitud entre este cartucho CB435A y el CB436A utilizado en el modelo P1505 pero en principio no son intercambiables. Cabe s considerar que estas instrucciones podrn ser utilizadas para desmontar tambin el cartucho del modelo mencionado.
Las comparaciones de las fotos tomadas de ambos cartuchos muestran con las flechas las diferencias bsicas de construccin, particularmente en sus laterales donde aparecen los puntos crticos de calce en la cavidad de las respectivas impresoras. Las figuras A y B muestran la parte inferior de los cartuchos 35A y 36A respectivamente.
Las figuras C y D muestran la parte superior de los cartuchos 35A y 36A respectivamente.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
Las figuras E y F muestran la parte izquierda de los cartuchos 35A y 36A respectivamente.
Las figuras G y H muestran la parte derecha de los cartuchos 35A y 36A respectivamente.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
1. Con la manija orientada hacia Ud. sacar el tornillo y la tapa lateral de la derecha. Tenga cuidado con el resorte del obturador del cilindro. Sacarlo junto con la tapa lateral.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
3. Deslizar la seccin de cavidad de desperdicios/OPC hacia la izquierda. Separar las dos mitades.
4. En la seccin cavidad de desperdicios/OPC, levantar el OPC desde el lado engranaje. Girar levemente y retirar de la cavidad.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
7. Limpiar todo vestigio de tner usado de la cavidad teniendo sumo cuidado en no daar la lmina de recuperacin ubicada en proximidad de la cuchilla de limpieza. Si la lmina es doblada o marcada de cualquier manera, el cartucho sufrir prdidas. Asegurarse que los sellos de espuma de la lmina de limpieza estn limpios.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
8. Aplicar a la cuchilla de limpieza nueva o reciclada polvo lubricante Methuselah. Instalar la cuchilla con sus dos tornillos.
9. Instalar el PCR limpio. Aplicar una leve cantidad de grasa lubricante en el lado de asiento negro del eje. Slo una muy pequea cantidad es suficiente.
10. Aplicar tambin una pequea cantidad de grasa conductiva al eje metlico del OPC.
11. Instalar el OPC nuevo o el original limpio lado maza primero. Colocar aparte la seccin cavidad de desperdicio/OPC.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
12. Tomando ahora la cavidad de tner lado derecho, sacar los dos tornillos y lateral. Notar que ambos tornillos poseen arandelas de seguridad.
13. Retirar los engranajes de la cavidad como se nuestra, dejando el engranaje barreno en su lugar.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
15. Retirar el conjunto de rodillo magntico. Ser precavido con los bujes pues son frgiles.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
17. Aspirar o limpiar con aire comprimido cualquier resto de tner que haya quedado en la cavidad. Asegurarse que el rodillo magntico y los sellos de la cuchilla dosificadora estn tambin limpios.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
19. Cuando se disponga del sello autoadhesivo, retirar el tapn del sello e instalar el mismo. Traer la cola del sello a travs del orificio. Instalar el tapn.
20. Instalar el lateral izquierdo con sus tornillos. Poner cuidado en el correcto montaje del contacto de la tapa.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
22. Montar el rodillo magntico lado buje negro primero. Girar el rodillo hasta que calce el chanfleado del eje en su lugar.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
25. Ubicar la cavidad de desperdicios y OPC sobre la cavidad de tner. Deslizar sobre la misma para que los pernos de la articulacin entren en sus respectivos agujeros.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
27. Con el resorte de la tapa del OPC tal como se muestra montar el lateral. Levantar el extremo del resorte para fijarlo a la cavidad.
28. Levantar el extremo del resorte para fijarlo a la tapa de OPC como se muestra. Fijar el tornillo a la tapa.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
REMANUFACTURADO DEL 1240/1650 HP LASERJET SERIE TONER CARTRIDGE UNINET IMAGING INC. BROTHERCARTUCHO DE TONERDISASSEMBLINGTHE P1006 CARTRIDGE UNINET IMAGING INC. BROTHER 1240/1650 ASSEMBLING THE TONER
DATOS DE DEFECTOS REPETITIVOS OPC 75mm Rodillo Magntico 31mm PCR 27mm IMPRIMIR PAGINA DE PRUEBA 1. Se efectan a travs del men de la P1006. 2. Acceder al Men de Preferencias de Impresin, luego Servicio y finalmente Pginas de Informacin. 3. Muestra tres pginas que se pueden seleccionar: la Demo, la de Configuraciones y la de Estado de Suministros. PASANDO LA PGINA DE LIMPIEZA Las hojas de limpieza para estos modelos slo pueden ser comandadas desde el men de la impresora. HP recomienda que para obtener mejores resultados se utilice transparencias. Si una transparencia no est disponible, usar entonces papel para copiadora con superficie suave. 1. Para efectuar la limpieza acceder a Preferencias. 2. Pulsar en Valores de Dispositivo. 3. Presionar Inicio. 4. El ciclo de limpieza demora cerca de 2 minutos con la hoja arrancando y parando en forma programada. 5. No apagar la impresora hasta que el trabajo haya concluido y la hoja haya pasado. LOCALIZACIN DE DEFECTOS EN LA IMPRESORA Tal como se observa en muchos modelos de bajo costo que aparecen en el mercado, esta serie de impresoras no poseen pantalla de LCD. Todos los cdigos de error consisten en diferentes secuencias de dos luces de tablero. La informacin disponible de fbrica sobre interpretacin de las secuencias es muy pobre y el manual de servicio es terrible. Luz Superior Intermitente: Ambas Luces Encendidas: Tapa del cartucho abierta, No hay cartucho o existe una traba de papel. Error fatal, desconectar la impresora y desenchufar durante 30 minutos. Si el error persiste significa que la impresora tiene un problema maysculo. No hay informacin an sobre cuales esos problemas podrn ser (el manual de servicio completo no ha sido an publicado por HP). La inicializacin de la impresora est en progreso.
3232 West El Segundo Blvd., Hawthorne, California 90250 USA Ph +1 424 675 3300 Fx +1 424 675 3400 techsupport@uninetimaging.com www.uninetimaging.com
2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
