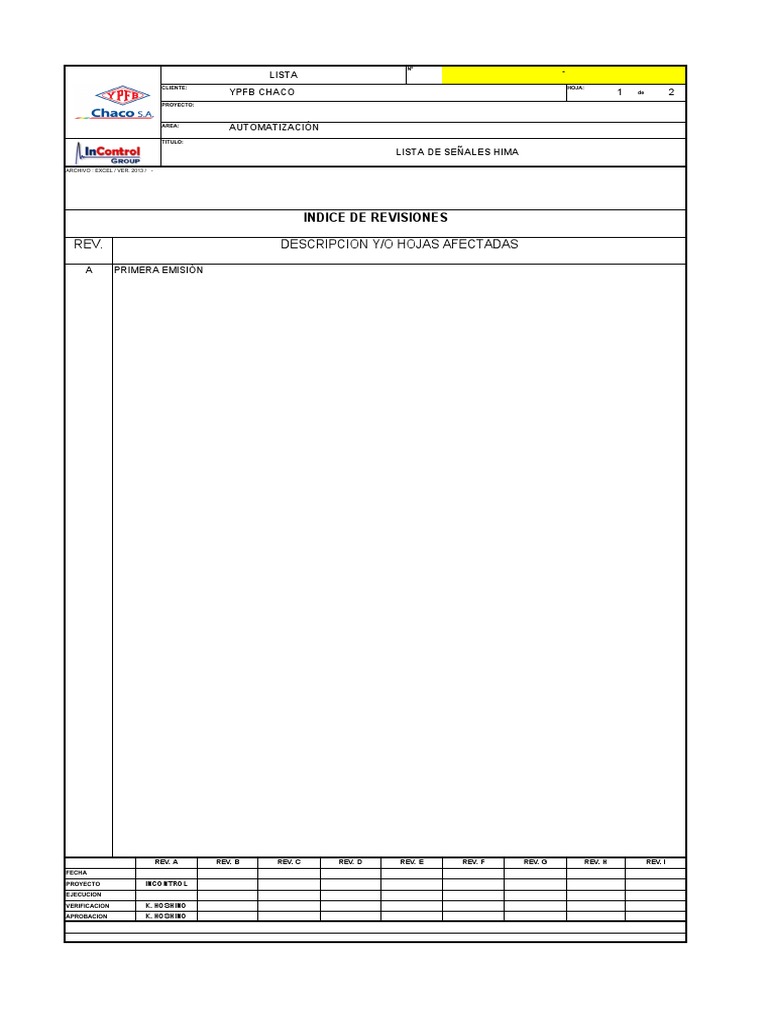

LISTA

Nº
-
CLIENTE: HOJA:
YPFB CHACO 1 de 2
PROYECTO:

AREA:
AUTOMATIZACIÓN
TITULO:

LISTA DE SEÑALES HIMA

ARCHIVO : EXCEL / VER. 2013 / -

INDICE DE REVISIONES

REV. DESCRIPCION Y/O HOJAS AFECTADAS

A PRIMERA EMISIÓN

REV. A REV. B REV. C REV. D REV. E REV. F REV. G REV. H REV. I

FECHA
PROYECTO INCONTROL
EJECUCION
VERIFICACION K. HOSHINO
APROBACION K. HOSHINO
 LISTA Nº
-
REV.
A
AREA:
AUTOMATIZACIÓN HOJA:
2 de 2

TITULO:
LISTA DE SEÑALES HIMA

Instrumentos PLC

Ítem Tag Descripción Señal tipo

GENERAL GENERAL TOTAL DIGITALES 318

1 HS-2837 Manual Alarm Call Point from Turbo Compressor Area - Emergency (Hard Button) Digital Tipo de Señal Cantidad TOTAL ANALÓGICAS 150
2 HS-2838 Manual Alarm Call Point in LER - Emergency (Hard Button) Digital Digitales 5 TOTAL 468
3 HS-2839 ESD - Entire Plant from Turbo Compressor Area (Hard Button) Digital Analógicas 0
4 HS-2840 ESD - Entire Plant from LER (Hard Button) Digital Total 5
5 HS-12149 SDV Test Permissive (Hard Button) Digital
PLANT SHUT DOWN
6 HS-511 ESD-Entire Plant from Gate Digital PLANT SHUT DOWN
7 HS-512 ESD-Entire from Control Room Digital Tipo de Señal Cantidad
8 HS-513 ESD-Entire from Unit-AC-401 Digital Digitales 16
9 HS-516 ESD-Entire from Generator Area Digital Analógicas 3
10 HS-517 ESD-Entire from AC-401 Area Digital Total 19
11 HS-518 Master Blowdown Digital
12 HS-522 K-401A SHUTDOWN SELECT Digital
13 HS-523 K-401B SHUTDOWN SELECT Digital FIRE & GAS
14 HS-524 K-401C SHUTDOWN SELECT Digital Tipo de Señal Cantidad
15 XL-556 AUTO BLOWDOWN TRIGGER - ENTIRE PLANT Digital Digitales 3
16 ZY-550 ESD - ENTIRE PLANT Digital Analógicas 40
17 HS-5009 BDV-1800 S-1800 (HP-2) TO FLARE Digital Total 43
18 HS-5013 BDV-1101 TO FLARE - RE ASSIGNED Digital
19 HS-5001 ESD - ENTIRE PLANT FROM CONTROL ROOM Digital
20 HS-5002 ESD - ENTIRE PLANT FROM UNIT - SEPARATOR AREA Digital PROCESS
21 HS-5007 MASTER BLOWDOWN Digital Tipo de Señal Cantidad
22 XL-5104 AUTO BLOWDOWN TRIGGER - ENTIRE PLANT Analógica Digitales 144
23 ZY-5101 ESD - ENTIRE PLANT Analógica Analógicas 77
24 XS-2805 ESD Entire Plant (ESD1 and ESD2) Analógica Total 221
FIRE & GAS
25 XFT-540 X-301 HOT OIL PACKAGE FIRE DETECTOR Analógica
26 XFT-541 GENERATOR WEST FIRE DETECTOR Analógica DCS SIGNALS
27 XFT-542 GENERATOR EAST FIRE DETECTOR Analógica Tipo de Señal Cantidad
28 XFT-543 X-401A/B/C WEST FIRE DETECTOR Analógica Digitales 21
29 XFT-544 X-401A/B/C EAST FIRE DETECTOR Analógica Analógicas 30
30 XGT-530 X-301 HOT OIL PACKAGE GAS DETECTOR Analógica Total 51
31 XGT-531 GG-801 GENERATOR GAS DETECTOR Analógica
32 XGT-532 GG-802 GENERATOR GAS DETECTOR Analógica
33 XGT-533 GG-803 GENERATOR GAS DETECTOR Analógica SALIDAS
34 XGT-534 X-401A/B/C WEST GAS DETECTOR Analógica Tipo de Señal Cantidad
35 XGT-535 X-401A/B/C EAST GAS DETECTOR Analógica Digitales 129
36 HS-5010 BDV-101 S-100 (HP-5) TO FLARE Digital Analógicas 0
37 HS-5005 CONTROL ROOM MANUAL CALL POINT (FIRE) Digital Total 129
38 HS-5006 ESD - ENTIRE PLANT FROM SEPARATOR AREA Digital
39 XFT-5030 SEPARATOR AREA WEST FIRE DETECTOR Analógica
40 XFT-5031 SEPARATOR AREA EAST FIRE DETECTOR Analógica
41 XFT-5032 C-1000 FLASH GAS COMP. FIRE DETECTOR Analógica
42 XFT-5033 X-201 FLASH GAS COMP. FIRE DETECTOR Analógica
43 XFT-5034 C-3000 PROPANE COMP. FIRE DETECTOR Analógica
44 XFT-5035 TK-101 CONDENSATE FIRE DETECTOR Analógica
45 XFT-5036 TK-30 CRUDE FIRE DETECTOR Analógica
46 XGT-5020 CONTROL ROOM GAS DETECTOR (OUTSIDE) Analógica
47 XGT-5021 OFFICE BUILDING GAS DETECTOR (OUTISIDE) Analógica
48 XGT-5022 SEPARATOR AREA WEST GAS DETECTOR Analógica
49 XGT-5023 SEPARATOR AREA EAST GAS DETECTOR Analógica
50 XGT-5024 S-100 / S-200 GAS DETECTOR Analógica
51 XGT-5025 C-1000 FLASH GAS COMP. GAS DETECTOR Analógica
52 XGT-5026 C-1100 AUX FLASH GAS COMP. GAS DETECTOR Analógica
53 XGT-5027 X-201 FLASH GAS COMP. GAS DETECTOR Analógica
54 XGT-5028 C-3000 PROPANE COMP. GAS DETECTOR Analógica
55 XGT-5029 T-2700 STABILIZER GAS DETECTOR Analógica
56 XGT-2814 Gas Detector Fuel Gas Area (Module #4) Analógica
57 XGT-2816 Gas Detector Module #3 Analógica
58 XGT-2817 Gas Detector Separators Area Analógica
59 XFT-2825 A Fire Detector Compressor Area Analógica
60 XFT-2825 B Fire Detector Compressor Area Analógica
61 XFT-2826 A Fire Detector Cooler Area Analógica
62 XFT-2826 B Fire Detector Cooler Area Analógica
63 XFT-2827 A Fire Detector Fuel Gas Area (module #4) Analógica
64 XFT-2827 B Fire Detector Fuel Gas Area (module #4) Analógica
65 XFT-2828 Fire Detector Module #3 / Suction Scrubber Area Analógica
66 XFT-2830 Fire Detector Separators Area Analógica
67 XFT-12150 Fire Detector S-101 Area Analógica
68 XGT-12151 Gas Detector S-101 Area Analógica
PROCESS
69 LSLL-1103 V-101 SEPARATOR BOOT (GLYCOL) Digital
70 VSHH-1601 AM-101A CONDESATE PRODUCT COOLER Digital
71 VSHH-1602 AM-101B CONDESATE PRODUCT COOLER Digital
72 LT-1109 E-103 CONDESATE STABILIZER REBOILER Analógica
73 HS-1110 A SDV-1110 Digital
74 HS-1110 B SDV-1110 Test (Soft Button) Digital
75 HS-1111 A SDV-1111 Digital
76 HS-1111 B SDV-1111 Test (Soft Button) Digital
77 LIT-1110 HP-6 HP 1ST STAGE PRODUCTION SEPARATOR Analógica
78 LIT-1110 HP-6 HP 1ST STAGE PRODUCTION SEPARATOR Analógica
79 LIT-1111 HP-6 HP 1ST STAGE PRODUCTION SEPARATOR Analógica
80 PIT-1123 HP 1st Separator HP-6 Analógica
81 ZSC-1110 Limit Switch - SDV-1110 Digital
82 ZSC-1111 Limit Switch - SDV-1111 Digital
83 ZSO-1110 Limit Switch - SDV-1110 Digital
84 ZSO-1111 Limit Switch - SDV-1111 Digital
85 PT-101 F-101 NEW PLANT INLET FILTER Analógica
86 HS-519 NV-1701 RESIDUE GAS TO FLARE Digital
87 HS-520 NV-1702 FEED STOCK TO FLARE Digital
88 HS-4110 A SDV-4110 Digital
89 HS-4110 B SDV-4110 Test (Soft Button) Digital
90 LSHH-4110 E-102 GAS CHILLER Digital
91 LSLL-4102 E-102 GAS CHILLER Digital
92 PIT-4110 E-102 GAS CHILLER Digital
93 ZSC-4110 Limit Switch - SDV-4110 Digital
94 ZSO-4110 Limit Switch - SDV-4110 Digital
95 VSHH-4601 AM-401A REFRIGERANT COOLER Digital
96 VSHH-4602 AM-401B REFRIGERANT COOLER Digital
97 VSHH-4603A AM-402A K-401A LUBE OIL COOLER Digital
98 VSHH-4603B AM-402B K-401B LUBE OIL COOLER Digital
99 VSHH-4603C AM-402C K-401C LUBE OIL COOLER Digital
100 HS-511 A SDV-511 Digital
101 HS-511 B SDV-511 Test (Soft Button) Digital

102 LIT-510 V-503 GLYCOL FLASH DRUM Analógica

103 ZSC-511 Limit Switch - SDV-511 Digital

104 ZSO-511 Limit Switch - SDV-511 Digital

105 HS-510 SDV-510 Digital

106 HS-510 SDV-510 Test (Soft Button) Digital

107 TIT-502 V-501 GLYCOL REGENERATOR Analógica

108 ZSC-510 Limit Switch - SDV-510 Digital

109 ZSO-510 Limit Switch - SDV-510 Digital

110 LIT-610 V-601 FLARE KNOCK OUT DRUM Analógica

111 LIT-810 F-801 A FUEL GAS FILTER Analógica

112 LIT-812 F-801 B FUEL GAS FILLTER Analógica

113 HS-1000 A SDV-1000 Digital

114 HS-1000 B SDV-1000 Test (Soft Button) Digital

115 ZSC-1000 Limit Switch - SDV-1000 Digital

116 ZSO-1000 Limit Switch - SDV-1000 Digital

117 HS-1810 A SDV-1810 Digital

118 HS-1810 B SDV-1810 Test (Soft Button) Digital

119 PIT-1810 S-1800 HP 1ST STAGE SEPARATOR Analógica

120 LIT-1810 S-1800 HP 1ST STAGE SEPARATOR Analógica

121 LIT-1810 S-1800 HP 1ST STAGE SEPARATOR Analógica

122 ZSC-1810 Limit Switch - SDV-1810 Digital

123 ZSO-1810 Limit Switch - SDV-1810 Digital

124 HS-110 A SDV-110 Digital

125 HS-110 B SDV-110 Test (Soft Button) Digital

126 LIT-110 S-100 HP 1ST STAGE PRODUCTION SEPARATOR Analógica

127 LIT-110 S-100 HP 1ST STAGE PRODUCTION SEPARATOR Analógica

128 PIT-110 S-100 HP 1ST STAGE PRODUCTION SEPARATOR Analógica

129 ZSC-110 Limit Switch - SDV-110 Digital

130 ZSO-110 Limit Switch - SDV-110 Digital

131 HS-5011 BDV-2000 S-2000 (HP-4) TO FLARE Digital

132 HS-5012 BDV-1900 S-1900 (HP-3) TO FLARE Digital

133 HS-2310 A SDV-2310 Digital

134 HS-2310 B SDV-2310 Test (Soft Button) Digital

135 HS-2311 A SDV-2311 Digital

136 HS-2311 B SDV-2311 Test (Soft Button) Digital

137 LIT-2310 S-2300 LP 2ND STAGE PRODUCTION SEPARATOR Analógica

138 LIT-2310 S-2300 LP 2ND STAGE PRODUCTION SEPARATOR Analógica

139 LIT-2311 S-2300 LP 2ND STAGE PRODUCTION SEPARATOR Analógica

140 LIT-2311 S-2300 LP 2ND STAGE PRODUCTION SEPARATOR Analógica

141 PIT-2310 S-2300 LP 2ND STAGE PRODUCTION SEPARATOR Analógica

142 ZSC-2310 Limit Switch - SDV-2310 Digital

143 ZSC-2311 Limit Switch - SDV-2311 Digital

144 ZSO-2310 Limit Switch - SDV-2310 Digital

145 ZSO-2311 Limit Switch - SDV-2311 Digital

146 HS-2200 SDV-2200 Digital

147 HS-2210 A SDV-2210 Digital

148 HS-2210 B SDV-2210 Test (Soft Button) Digital

149 HS-2211 A SDV-2211 Digital

150 HS-2211 B SDV-2211 Test (Soft Button) Digital

151 LIT-2210 S-2200 LP 3RD STAGE PRODUCTION SEPARATOR Analógica
152 LIT-2210 S-2200 LP 3RD STAGE PRODUCTION SEPARATOR Analógica

153 LIT-2211 S-2200 LP 3RD STAGE PRODUCTION SEPARATOR Analógica

154 LIT-2211 S-2200 LP 3RD STAGE PRODUCTION SEPARATOR Analógica

155 PIT-2210 S-2200 LP 3RD STAGE PRODUCTION SEPARATOR Analógica

156 ZSC-2210 Limit Switch - SDV-2210 Digital

157 ZSC-2211 Limit Switch - SDV-2211 Digital

158 ZSO-2210 Limit Switch - SDV-2210 Digital

159 ZSO-2211 Limit Switch - SDV-2211 Digital

160 PIT-6010 F-3 FILTER CONDENSATE Analógica

161 HS-4910 A SDV-4910 Digital

162 HS-4910 B SDV-4910 Test (Soft Button) Digital

163 LIT-4910 V-4900 LIQUID SEPARATOR Analógica
164 ZSC-4910 Limit Switch - SDV-4910 Digital

165 ZSO-4910 Limit Switch - SDV-4910 Digital

166 PIT-1310 P-01 A DISCHARGE Analógica

167 PIT1311 P-02 A DISCHARGE Analógica

168 PIT-1312 P-02 B DISCHARGE Analógica

169 LIT-910 API PIT Analógica

170 HS-2010 A SDV-2010 Digital

171 HS-2010 B SDV-2010 Test (Soft Button) Digital

172 HS-2011 A SDV-2011 Digital

173 HS-2011 B SDV-2011 Test (Soft Button) Digital

174 LIT-2010 S-2000 HP 1ST STAGE PRODUCTION SEPARATOR Analógica

175 LIT-2010 S-2000 HP 1ST STAGE PRODUCTION SEPARATOR Analógica

176 PT-2001 HP 1st Separator S-2000 Analógica

177 ZSC-2010 Limit Switch - SDV-2010 Digital

178 ZSO-2010 Limit Switch - SDV-2010 Digital

179 ZSC-2011 Limit Switch - SDV-2011 Digital

180 ZSO-2011 Limit Switch - SDV-2011 Digital

181 LIT-1711 HP Separator S-1710 Analógica

182 LIT-1711 HP Separator S-1710 Analógica

183 PIT-1713 HP Separator S-1710 Analógica

184 ZSC-1704 Limit Switch - BDV-1704 Digital

185 ZSC-1714 Limit Switch - SDV-1714 Digital

186 ZSO-1704 Limit Switch - BDV-1704 Digital

187 ZSO-1714 Limit Switch - SDV-1714 Digital

188 LIT-1811 HP Test Separator S-1810 Analógica

189 LIT-1811 HP Test Separator S-1810 Analógica

190 PIT-1813 HP Test Separator S-1810 Analógica

191 ZSC-1804 Limit Switch - BDV-1804 Digital

192 ZSC-1814 Limit Switch - SDV-1814 Digital

193 ZSO-1804 Limit Switch - BDV-1804 Digital

194 ZSO-1814 Limit Switch - SDV-1814 Digital

195 LIT-2902 Gas Compressor Suction Scrubber V-2901 Analógica

196 LIT-2902 Gas Compressor Suction Scrubber V-2901 Analógica

197 PIT-2908 Gas Compressor Suction Scrubber V-2901 Analógica

198 ZSC-2935 Limit Switch - SDV-2935 Digital

199 ZSO-2935 Limit Switch - SDV-2935 Digital

200 HS-2973 Remote Fast Stop Pressurized from Field (Hard Button) Digital

201 HS-2974 Remote Fast Stop Depressurized from Field (Hard Button) Digital

202 HS-2974 B Remote Fast Stop Depressurized from CCR (Hard Button) Digital

203 HS-2980 Remote Normal Stop (Soft Button) Digital

204 PIT-2915 Compressor Discharge Analógica

205 TIT-2916 Compressor Discharge Analógica

206 TIT-2923 Air Cooler Discharge Analógica

207 TIT-2923 Air Cooler Discharge Analógica

208 TIT-2923 Air Cooler Discharge Analógica

209 UA-2910 Fire Detection in Turbo Compressor Indication Digital

210 VSHH-2930 A Vibration ME-2903 A Digital

211 VSHH-2930 B Vibration ME-2903 B Digital

212 XS-2970 Turbo Compressor FS-LO Press Indication Digital

213 XS-2971 Turbo Compressor FS-LO Depress Indication Digital

214 XS-2972 SD Summary Indication Digital

215 ZSC-2904 B Limit Switch - SDV-2904 Digital

216 ZSC-2922 B Limit Switch - SDV-2922 Digital

217 ZSC-2936 B Limit Switch - BDV-2936 Digital

218 ZSC-2942 B Limit Switch - SDV-2942 Digital

219 ZSC-2944 Limit Switch - XV-2944 Digital

220 ZSO-2904 B Limit Switch - SDV-2904 Digital

221 ZSO-2922 B Limit Switch - SDV-2922 Digital

222 ZSO-2936 B Limit Switch - BDV-2936 Digital
223 ZSO-2942 B Limit Switch - SDV-2942 Digital

224 ZSO-2944 Limit Switch - XV-2944 Digital

225 PDIT-1310 E-101 GAS-GAS EXCHANGER Analógica

226 LIT-2917 HP Fuel Gas Filter F-2905 B Analógica

227 LIT-2940 HP Fuel Gas Filter F-2905 A Analógica

228 LIT-2951 HP Fuel Gas Scrubber V-2907 Analógica

229 LIT-2951 HP Fuel Gas Scrubber V-2907 Analógica

230 PIT-2924 HP Fuel Gas Scrubber V-2907 Analógica

231 TDIT-2976 Differential Temperature - HP Fuel Gas Heater E-2904 A/B Analógica

232 TIT-2918 A HP Fuel Gas Heater E-2904 A Skin Temperature Analógica

233 TIT-2918 B HP Fuel Gas Heater E-2904 B Skin Temperature Analógica

234 TT-2928 HP Fuel Gas Heater E-2904 A/B Outlet Temperature Analógica

235 ZSC-2946 Limit Switch - SDV-2946 Digital

236 ZSC-2956 Limit Switch - SDV-2956 Digital

237 ZSO-2946 Limit Switch - SDV-2946 Digital

238 ZSO-2956 Limit Switch - SDV-2956 Digital

239 PIT-2938 Fuel Gas to Turbine Analógica

240 ZSC-2937 Limit Switch - SDV-2937 Digital

241 ZSC-2953 Limit Switch - SDV-2953 Digital

242 ZSC-2981 Limit Switch - BDV-2981 Digital

243 ZSO-2937 Limit Switch - SDV-2937 Digital

244 ZSO-2953 Limit Switch - SDV-2953 Digital

245 ZSO-2981 Limit Switch - BDV-2981 Digital

246 PIT-2110 (S-2100) S-2100 LP 2ND STAGER PRODUCTION SEPARATOR Analógica

247 HS-2410 A SDV-2410 Digital

248 HS-2410 B SDV-2410 Test (Soft Button) Digital

249 HS-2411 A SDV-2411 Digital

250 HS-2411 B SDV-2411 Test (Soft Button) Digital

251 LIT-2410 S-2400 LP 1ST STAGER PRODRUCTION SEPARATOR Analógica

252 LIT-2410 S-2400 LP 1ST STAGER PRODRUCTION SEPARATOR Analógica

253 LIT-2411 S-2400 LP 1ST STAGER PRODRUCTION SEPARATOR Analógica

254 LIT-2411 S-2400 LP 1ST STAGER PRODRUCTION SEPARATOR Analógica

255 PIT-2410 S-2400 LP 1ST STAGER PRODRUCTION SEPARATOR Analógica

256 ZSC-2410 Limit Switch - SDV-2410 Digital

257 ZSC-2411 Limit Switch - SDV-2411 Digital

258 ZSO-2410 Limit Switch - SDV-2410 Digital

259 ZSO-2411 Limit Switch - SDV-2411 Digital

260 HS-210 A SDV-210 Digital

261 HS-210 B SDV-210 Test (Soft Button) Digital

262 HS-211 A SDV-211 Digital

263 HS-211 B SDV-211 Test (Soft Button) Digital

264 LIT-210 S-200 LP 2ND STAGE TEST SEPARATOR Analógica

265 LIT-210 S-200 LP 2ND STAGE TEST SEPARATOR Analógica

266 LIT-211 S-200 LP 2ND STAGE TEST SEPARATOR Analógica

267 LIT-211 S-200 LP 2ND STAGE TEST SEPARATOR Analógica

268 PIT-210 S-200 LP 2ND STAGE TEST SEPARATOR Analógica

269 ZSC-210 Limit Switch - SDV-210 Digital

270 ZSC-211 Limit Switch - SDV-211 Digital

271 ZSO-210 Limit Switch - SDV-210 Digital

272 ZSO-211 Limit Switch - SDV-211 Digital

273 PIT-3003 Instrument Air Distribution Header Analógica

274 HS-12119 BDV-12119 S-101 TO FLARE (Hard Button) Digital

275 LIT-12085 S-101 Inlet Separator Analógica

276 LIT-12093 S-101 Inlet Separator Analógica

277 LIT-12113 S-101 Inlet Separator Analógica

278 PIT-12114 S-101 Inlet Separator Analógica

279 ZSC-12086 Limit Switch - SDV-12086 Digital

280 ZSC-12091 Limit Switch - SDV-12091 Digital

281 ZSC-12106 Limit Switch - SDV-12106 Digital

282 ZSC-12119 Limit Switch - BDV-12119 Digital

283 ZSO-12086 Limit Switch - SDV-12086 Digital

284 ZSO-12091 Limit Switch - SDV-12091 Digital

285 ZSO-12106 Limit Switch - SDV-12106 Digital

286 ZSO-12119 Limit Switch - BDV-12119 Digital

287 ZIX-41196 Partial Stroke Permissive - SDV-41196 Digital

288 ZSC-41196 Limit Switch - SDV-41196 Digital

289 ZSO-41196 Limit Switch - SDV-41196 Digital

DCS SIGNALS
290 MVT-1120 HP 1st Separator HP-6 Analógica
291 PIT-1122 HP 1st Separator HP-6 Analógica
292 TAL-2000 HP Separator S-2000 Analógica
293 LIT-1710 HP Separator S-1710 Analógica

294 MVT-1712 HP Separator S-1710 Analógica

295 PIT-1707 HP Separator S-1710 Analógica

296 LIT-1810 HP Test Separator S-1810 Analógica

297 MVT-1812 HP Separator S-1810 Analógica

298 PIT-1807 HP Test Separator S-1810 Analógica

299 LIT-2901 Gas Compressor Suction Scrubber V-2901 Analógica

300 PIT-2941 Gas Compressor Suction Scrubber V-2901 Analógica

301 HS-2959 A Hand Switch - ME-2903 A Digital

302 HS-2959 B Hand Switch - ME-2903 B Digital

303 HS-2960 A Hand Switch - ME-2903 A Digital

304 HS-2960 B Hand Switch - ME-2903 B Digital

305 PDIT-2920 Compressor Suction Analógica

306 TIT-2921 Air Cooler Discharge Analógica

307 UA-2909 Trouble Alarm F&G System in Turbo Compressor Digital

308 UA-2913 A ME-2903 A Failure Digital

309 UA-2913 B ME-2903 B Failure Digital

310 UI-2954 A ME-2903 A Status Digital

311 UI-2954 B ME-2903 B Status Digital

312 ZSC-2926 A Limit Switch - FV-2926 Digital

313 ZSO-2926 B Limit Switch - FV-2926 Digital

314 PDIT-2980 Differential Pressure Instrument Air Filters Analógica

315 PDIT-2983 Fuel Gas to Turbine Analógica

316 TIT-2933 Fuel Gas to Turbine Analógica

317 ZSC-2984 A Limit Switch - VB-2984A - Raw Gas Indication Digital

318 ZSC-2984 B Limit Switch - VB-2984B - Raw Gas Indication Digital

319 LIT-2971 HP Fuel Gas Scrubber V-2907 Analógica

320 PDIT-2932 HP Fuel Gas Filter F-2905 A/B Analógica

321 PIT-2972 HP Fuel Gas Scrubber V-2907 Analógica

322 TDIC-2927 Differential Temperature - HP Fuel Gas Heater E-2904 A/B Analógica

323 UA-2978 A E-2904 A Failure Digital

324 UA-2978 B E-2904 B Failure Digital

325 UI-2977 A E-2904 A Status Digital

326 UI-2977 B E-2904 B Status Digital

327 PIT-2929 Fuel Gas to Turbine Analógica

328 PIT-2970 Seal Gas Receiver V-2906 Analógica

329 PIT-3002 Instrument Air Receiver Analógica

330 PIT-3002 Instrument Air Receiver Analógica

331 LIT-3005 Open Drain Tank Analógica

332 LIT-3005 Open Drain Tank Analógica

333 LIT-3005 Open Drain Tank Analógica

334 XGT-2815 Gas Detector LER Analógica

335 XST-2831 A Smoke Detector LER Room Digital

336 XST-2831 B Smoke Detector LER Room Digital

337 XST-2831 C Smoke Detector LER Room - Basement Digital

338 XST-2831 D Smoke Detector LER Room - Basement Digital

339 LIT-12048 S-101 Inlet Separator Analógica

340 LIT-12109 S-101 Inlet Separator Analógica

341 PIT-12044 S-101 Inlet Separator Analógica

SALIDAS
342 ZY-550 ESD - ENTIRE PLANT Digital
343 ZY-5101 ESD - ENTIRE PLANT Digital
344 ZY-5106 TO DP-1 SHUT TRIP EXISTING PLANT MOTORS Digital

345 NY-1502 NV-1502 PRODUCED GAS TO PLANT Digital

346 NY-1501 NV-1501 RESIDUE GAS FROM PLANT Digital

347 NY-1503 NV-1503 V-101 LIQUID TO E-501 Digital

348 NY-1504 NV-1504 COND. FEED FROM SEPARATORS Digital

349 XY-1803 AM-101A CONDENSATE PRODUCT COOLER FAN Digital

350 XY-1804 AM-101B CONDENSATE PRODUCT COOLER FAN Digital

351 NY-1505 NV-1505 CONDENSATE PRODUCT TO TK-101 Digital

352 FY-1404A FV-1404 HOT OIL TO E-103 Digital

353 XY-1801 P-101A METHANOL INJECTION PUMP Digital

354 XY-1802 P-101B METHANOL INJECTION PUMP Digital

355 NY-1506 NV-1506 FEED STOCK TO HP-6 Digital

356 ZY-2501 K-201 FLASH GAS COMPRESSOR Digital

357 NY-2503 NV-2503 K-201 ENGINE FUEL GAS Digital

358 ZY-3506 H-301 HOT OIL HEATER Digital

359 XY-4801 AM-401A REFRIGERANT CONDENSER FAN Digital

360 XY-4802 AM-401B REFRIGERANT CONDENSER FAN Digital

361 XY-4803A AM-402A REFRIGER. COMP. LUB OIL COOLER FAN Digital
362 ZY-4503 K-401A REFRIGERANT COMPRESSOR Digital
363 XY-4803B AM-402B REFRIGER. COMP. LUB OIL COOLER FAN Digital

364 ZY-4507 K-401B REFRIGERANT COMPRESSOR Digital

365 XY-4803C AM-402C REFRIGER. COMP. LUB OIL COOLER FAN Digital

366 ZY-4511 K-401C REFRIGERANT COMPRESSOR Digital

367 XY-5801 P-501A GLYCOL INJECTION PUMP Digital

368 XY-5802 P-501B GLYCOL INJECTION PUMP Digital

369 PY-8301A PV-8301 RESIDUE GAS TO F-801A/B FUEL GAS Digital

370 NY-8501 NV-8501 FUEL GAS TO GENERATORS Digital

371 ESDY-100 ESDV-100 TAIGUATI FIELD Digital

372 ESDY-200 ESDV-200 ESCONDIDO FIELD LINE TEST Digital

373 ESDY-300 ESDV-300 ESCONDIDO FIELD LINE GROUP Digital

374 ESDY-400 ESDV-400 LOS SURIS FIELD Digital

375 ESDY-301 ESDV-301 VERTIENTE FIELD LINE GROUP Digital

376 ESDY-2500 ESDV-2500 GAS FROM LVT-11 WELL Digital

377 ESDY-1300 ESDV-1300 CRUDE FROM TK-30 TO P-01A/B Digital

378 XL-5104 TRIGGER AUTO BLOWDOWN - PLANT Digital

379 XL-556 TRIGGER AUTO BLOWDOWN - PLANT Digital

380 XL-5040 ESD BEACON, FIRE & GAS - SEPARATOR AREA Digital

381 XA-5041 ESD SIREN, FIRE & GAS - SEPARATOR AREA Digital

382 XL-554 ESD BEACON, FIRE & GAS - AC-401 AREA Digital

383 XA-555 ESD SIREN, FIRE & GAS - AC-401 AREA Digital

384 BDY-1701 BDV-1701 RESIDUE GAS TO FLARE Digital

385 BDY-1702 BDV-1702 FEED STOCK TO FLARE Digital

386 BDY-1800 BDV-1800 S-1800 (HP-2) TO FLARE Digital

387 BDY-101 BDV-101 S-100 (HP-5) TO FLARE Digital

388 BDY-2000 BDV-2000 S-2000 (HP-4) TO FLARE Digital

389 BDV-1704 BDV-1704 HP Separator S-1710 Digital

390 SDV-1714 SDV-1714 HP Separator S-1710 Digital

391 BDV-1804 BDV-1804 HP Test Separator S-1810 Digital

392 SDV-1814 SDV-1814 HP Test Separator S-1810 Digital

393 SDV-2904 (SV- SDV-2904 Gas Compressor Suction Scrubber V-2901 Digital
2904B)
394 SDV-2935 SDV-2935 Gas Compressor Suction Scrubber V-2901 Digital

395 SDV-2942 (SV- SDV-2942 Gas Compressor Suction Scrubber V-2901 Digital
2942B)

396 SDV-2922 (SV- SDV-2922 Air Cooler Outlet Digital

2922B)
397 UC-2973 Turbo Compressor FS-LO Press Digital

398 BDV-2936 (SV- BDV-2936 Compressor Discharge Blowdown Digital

2936B)
399 UC-2974 A Turbo Compressor FS-LO Depress Digital

400 UC-2974 B Turbo Compressor FS-LO Depress Digital

401 UCP-2980 Turbo Compressor CD-NL Digital

402 UCA-2959 A Motor Air Cooler ME-2903 A (Start) Digital

403 UCA-2959 B Motor Air Cooler ME-2903 B (Start) Digital

404 UCP-2960 A Motor Air Cooler ME-2903 A (Stop) Digital

405 UCP-2960 B Motor Air Cooler ME-2903 B (Stop) Digital

406 UC-2905 A Motor Air Cooler ME-2903 A (Stop from ESD) Digital

407 UC-2905 B Motor Air Cooler ME-2903 B (Stop from ESD) Digital

408 XV-2944 XV-2944 Compressor Bypass Digital

409 SDV-2946 SDV-2946 HP Fuel Gas Scrubber V-2907 Digital

410 SDV-2956 SDV-2956 HP Fuel Gas Scrubber V-2907 Digital

411 UC-2979 A Control Panel E-2904 A Digital

412 UC-2979 B Control Panel E-2904 B Digital

413 BDV-2981 BDV-2981 HP Fuel Gas System Digital

414 SDV-2937 SDV-2937 HP Fuel Gas System Digital

415 SDV-2953 SDV-2953 Seal Gas Receiver Digital

416 SV-3006 Open Drain Pump P-3003 A Digital

417 SV-3010 Open Drain Pump P-3003 B Digital

418 XI-2854 ESD Beacon Compression Area Digital

419 XA-2855 ESD Siren Compression Area Digital

420 XS-2805 ESD Entire Plant + Trigger Autoblowdown (ESD1 and ESD2) Digital

421 SDV-12086 SDV-12086 Process Water Outlet S-101 Digital

422 SDV-12091 SDV-12091 Gas Outlet S-101 Digital

423 SDV-12106 SDV-12106 HC liquid Outlet S-101 Digital

424 BDV-12119 BDV-12119 S-101 Blow Down Digital

425 SDV-41196 SDV-41196 LVT-12 Inlet to LVT Plant Digital

426 SDVY-4110 A SDV-4110 PROPANE INLET TO E-102 Digital

427 SDVY-4110 B SDV-4110 PARTIAL STROKE Digital

428 SDVY-511 A SDV-511 GLYCOL OUTLET FROM V-503 (Future V-504) Digital
429 SDVY-511 B SDV-511 PARTIAL STROKE Digital

430 SDVY-510 A SDV-510 HOT OIL SUPPLY INLET TO E-504 Digital

431 SDVY-510 B SDV-510 PARTIAL STROKE Digital

432 SDVY-1303 P-02 A QUINTUPLEX PUMPS Digital
433 SDVY-1304 P-02 B QUINTUPLEX PUMPS Digital

434 SDVY-1810 A SDV-1810 LIQUID OUTLET FROM S-1800 Digital

435 SDVY-1810 B SDV-1810 PARTIAL STROKE Digital

436 SDVY-110 A SDV-110 LIQUID OUTLET FROM S-100 Digital

437 SDVY-110 B SDV-110 PARTIAL STROKE Digital

438 SDVY-2310 A SDV-2310 CONDENSATE OUTLET FROM S-2300 Digital

439 SDVY-2310 B SDV-2310 PARTIAL STROKE Digital

440 SDVY-2311 A SDV-2311 WATER OUTLET FROM S-2300 Digital

441 SDVY-2311 B SDV-2311 PARTIAL STROKE Digital

442 SDVY-2210 A SDV-2210 CONDENSATE OUTLET FROM S-2200 Digital

443 SDVY-2210 B SDV-2210 PARTIAL STROKE Digital

444 SDVY-2211 A SDV-2211 WATER OUTLET FROM S-2200 Digital

445 SDVY-2211 B SDV-2211 PARTIAL STROKE Digital

446 ESDVY-2200 INLET TO LP SEPARATOR S-2200 Digital

447 SDVY-4910 A SDV-4910 LIQUID OUTLET FROM V-4900 Digital

448 SDVY-4910 B SDV-4910 PARTIAL STROKE Digital

449 XY-1316 P-01 A LACT CHARGE PUMP Digital

450 SDVY-1110 A SDV-1110 CONDENSATE OUTLET FROM HP-6 Digital

451 SDVY-1110 B SDV-1110 PARTIAL STROKE Digital

452 SDVY-1111 A SD-1111 WATER OUTLET FROM HP-6 Digital

453 SDVY-1111 B SDV-1111 PARTIAL STROKE Digital

454 SDVY-2010 A SDV-2010 CONDENSATE OUTLET FROM S-2000 Digital

455 SDVY-2010 B SDV-2010 PARTIAL STROKE Digital

456 SDVY-2011 A SDV-2011 WATER OUTLET FROM S-2000 Digital

457 SDVY-2011 B SDV-2011 PARTIAL STROKE Digital

458 ESDVY-1000 A ESDV-1000 LVT-6/8/9 LINE GROUP Digital

459 ESDVY-1000 B SDV-1000 PARTIAL STROKE Digital

460 SDVY-2410 A SDV-2410 CONDENSATE OUTLET FROM S-2400 Digital

461 SDVY-2410 B SDV-2410 PARTIAL STROKE Digital

462 SDVY-2411 A SDV-2411 WATER OUTLET FROM S-2400 Digital

463 SDVY-2411 B SDV-2411 PARTIAL STROKE Digital

464 SDVY-210 A SDV-210 CONDENSATE OUTLET FROM S-200 Digital

465 SDVY-210 B SDV-210 PARTIAL STROKE Digital

466 SDVY-211 A SDV-211 WATER OUTLET FROM S-200 Digital

467 SDVY-211 B SDV-211 PARTIAL STROKE Digital

468 ESDVY-60 P-060 WATER INJECTION PUMP Digital

469 SDVY-1104 A SDV-1104 CONDENSATE OUTLET FROM V-101 Digital

470 BDVY-1101 BDV-1101 F-101 TO FLARE Digital
