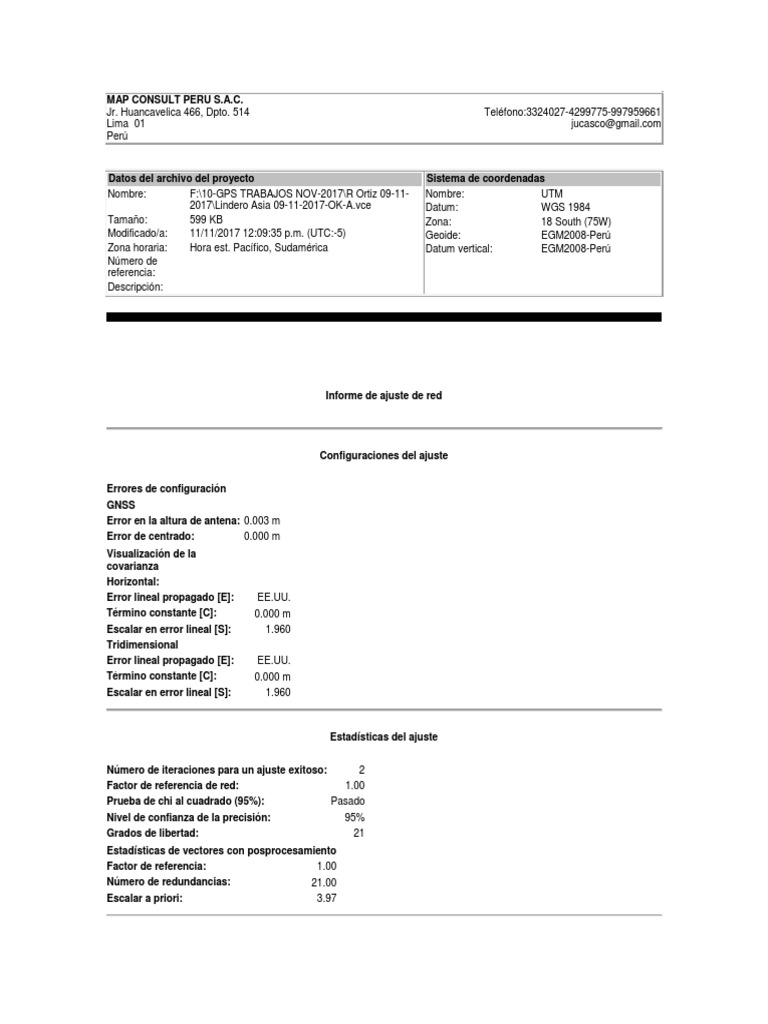

MAP CONSULT PERU S.A.C.

Jr. Huancavelica 466, Dpto. 514 Teléfono:3324027-4299775-997959661

Lima 01 jucasco@gmail.com
Perú

Datos del archivo del proyecto Sistema de coordenadas

Nombre: F:\10-GPS TRABAJOS NOV-2017\R Ortiz 09-11- Nombre: UTM
2017\Lindero Asia 09-11-2017-OK-A.vce Datum: WGS 1984
Tamaño: 599 KB Zona: 18 South (75W)
Modificado/a: 11/11/2017 12:09:35 p.m. (UTC:-5) Geoide: EGM2008-Perú
Zona horaria: Hora est. Pacífico, Sudamérica Datum vertical: EGM2008-Perú
Número de
referencia:
Descripción:

Informe de ajuste de red

Configuraciones del ajuste

Errores de configuración
GNSS
Error en la altura de antena: 0.003 m
Error de centrado: 0.000 m
Visualización de la
covarianza
Horizontal:
Error lineal propagado [E]: EE.UU.
Término constante [C]: 0.000 m
Escalar en error lineal [S]: 1.960
Tridimensional
Error lineal propagado [E]: EE.UU.
Término constante [C]: 0.000 m
Escalar en error lineal [S]: 1.960

Estadísticas del ajuste

Número de iteraciones para un ajuste exitoso: 2

Factor de referencia de red: 1.00
Prueba de chi al cuadrado (95%): Pasado
Nivel de confianza de la precisión: 95%
Grados de libertad: 21
Estadísticas de vectores con posprocesamiento
Factor de referencia: 1.00
Número de redundancias: 21.00
Escalar a priori: 3.97
 Límites de punto de control

Este σ Norte σ Altura σ Elevación σ

ID de punto Tipo
(Metro) (Metro) (Metro) (Metro)
LI01 Global Fijo Fijo Fijo
Fijo = 0.000001(Metro)

Coordenadas de cuadrícula ajustadas

Este Este Error Valor norte Valor norte Error Elevación Elevación Error
ID de punto Límite
(Metro) (Metro) (Metro) (Metro) (Metro) (Metro)
ABRA 337121.7379 0.029 8571198.0670 0.027 84.0099 0.093
ABRA 2 337130.1255 0.029 8571169.9969 0.027 84.8455 0.091
CERCA A POZA 323732.5596 0.014 8593123.8008 0.013 16.7845 0.063
CERRO POZA 323576.9126 0.014 8593165.7454 0.012 22.1178 0.056
GRANJA 337378.6299 0.030 8571443.7451 0.027 104.3310 0.100
H3 324283.1795 0.012 8593345.3609 0.012 23.6144 0.057
HI5 327080.2158 0.007 8593376.4304 0.008 113.4064 0.044
IGUANCAL 326502.6898 0.007 8593215.8081 0.008 89.7113 0.042
LETRERO 324756.1682 0.013 8593606.9955 0.010 38.6111 0.050
LI01 280479.8248 ? 8661244.5383 ? 133.9124 ? LLh

Coordenadas geodésicas ajustadas

Altura Altura Error

ID de punto Latitud Longitud Límite
(Metro) (Metro)
ABRA S12°55'13.166971" O76°30'04.898272" 109.0171 0.093
ABRA 2 S12°55'14.082048" O76°30'04.625466" 109.8510 0.091
CERCA A POZA S12°43'17.021828" O76°37'24.504875" 41.6852 0.063
CERRO POZA S12°43'15.625270" O76°37'29.655525" 46.9979 0.056
GRANJA S12°55'05.220877" O76°29'56.328021" 129.4044 0.100
H3 S12°43'09.923608" O76°37'06.207392" 48.6208 0.057
HI5 S12°43'09.474270" O76°35'33.485708" 138.8538 0.044
IGUANCAL S12°43'14.585954" O76°35'52.662165" 115.0534 0.042
LETRERO S12°43'01.505252" O76°36'50.475183" 63.7151 0.050
LI01 S12°06'10.861040" O77°01'00.984468" 157.5557 ? LLh

Coordenadas ECEF ajustadas

X X Error Y Y Error Z Z Error 3D Error

ID de punto Límite
(Metro) (Metro) (Metro) (Metro) (Metro) (Metro) (Metro)
ABRA 1451373.4217 0.036 -6046037.8927 0.088 -1416839.5749 0.035 0.101
ABRA 2 1451380.1402 0.036 -6046030.6492 0.085 -1416867.1706 0.035 0.099
CERCA A POZA 1439598.9978 0.021 -6053804.6325 0.060 -1395365.7284 0.019 0.066
CERRO POZA 1439451.2124 0.019 -6053854.8149 0.054 -1395325.0352 0.017 0.059
GRANJA 1451642.0171 0.038 -6046049.9924 0.094 -1416606.1224 0.036 0.108
H3 1440148.6991 0.018 -6053730.2123 0.054 -1395154.4792 0.017 0.059
HI5 1442890.9852 0.012 -6053170.7916 0.042 -1395160.8768 0.013 0.045
IGUANCAL 1442314.8171 0.011 -6053248.6809 0.040 -1395308.8665 0.012 0.043
LETRERO 1440627.0186 0.016 -6053690.0828 0.048 -1394905.4510 0.015 0.053
LI01 1401321.0568 ? -6077986.4311 ? -1328580.4131 ? ? LLh

Componentes de la elipse de error

Semieje mayor Semieje menor

ID de punto Acimut
(Metro) (Metro)
ABRA 0.040 0.028 129°
ABRA 2 0.040 0.028 128°
CERCA A POZA 0.019 0.014 128°
CERRO POZA 0.019 0.014 122°
GRANJA 0.041 0.029 128°
H3 0.018 0.012 133°
HI5 0.011 0.007 141°
IGUANCAL 0.011 0.007 142°
LETRERO 0.016 0.012 108°

Observaciones GNSS ajustadas

Estandarizada
ID de observación Observación Error a posteriori Residual
Residual
LI01 --> IGUANCAL (PV34) Acimut 146°21'13" 0.014 seg -0.013 seg -2.365
ΔAlt. -42.502 m 0.042 m -0.019 m -1.051
Dist. elip 82127.546 m 0.009 m 0.010 m 3.208

LI01 --> HI5 (PV19) Acimut 145°57'29" 0.014 seg 0.023 seg 2.727
ΔAlt. -18.702 m 0.044 m 0.006 m 0.232
Dist. elip 82320.176 m 0.009 m -0.019 m -2.861

IGUANCAL --> HI5 (PV29) Acimut 74°48'34" 1.013 seg 0.164 seg 1.190
ΔAlt. 23.800 m 0.029 m -0.004 m -0.459
Dist. elip 599.464 m 0.003 m 0.001 m 2.753

LI01 --> LETRERO (PV6) Acimut 147°13'25" 0.029 seg 0.084 seg 0.826
 ΔAlt. -93.841 m 0.050 m 0.203 m 1.279
Dist. elip 80833.988 m 0.012 m -0.173 m -1.385

LI01 --> ABRA (PV28) Acimut 148°15'53" 0.046 seg 0.015 seg 1.011
ΔAlt. -48.539 m 0.093 m -0.063 m -0.755
Dist. elip 106373.941 m 0.031 m 0.006 m 0.357

LI01 --> ABRA 2 (PV15) Acimut 148°16'08" 0.046 seg -0.038 seg -0.983
ΔAlt. -47.705 m 0.091 m 0.015 m 0.520
Dist. elip 106402.167 m 0.031 m -0.002 m -0.133

ABRA --> ABRA 2 (PV25) Acimut 163°41'57" 28.337 seg 0.828 seg 0.820
ΔAlt. 0.834 m 0.034 m -0.002 m -0.611
Dist. elip 29.299 m 0.004 m 0.000 m 0.539

H3 --> CERRO POZA (PV21) Acimut 256°05'16" 2.031 seg 0.200 seg 0.666
ΔAlt. -1.623 m 0.039 m 0.004 m 0.514
Dist. elip 728.761 m 0.009 m 0.000 m 0.070

LI01 --> H3 (PV24) Acimut 147°36'21" 0.025 seg -0.002 seg -0.233
ΔAlt. -108.935 m 0.057 m 0.024 m 0.553
Dist. elip 80795.547 m 0.014 m -0.005 m -0.651

LI01 --> CERRO POZA (PV9) Acimut 148°05'50" 0.031 seg 0.001 seg 0.030
ΔAlt. -110.558 m 0.056 m -0.014 m -0.562
Dist. elip 80566.457 m 0.014 m 0.005 m 0.641

LI01 --> CERCA A POZA (PV11) Acimut 148°01'11" 0.031 seg 0.015 seg 0.407
ΔAlt. -115.871 m 0.063 m -0.010 m -0.205
Dist. elip 80685.243 m 0.015 m 0.005 m 0.323

H3 --> CERCA A POZA (PV20) Acimut 248°26'15" 2.223 seg 0.073 seg 0.358
ΔAlt. -6.936 m 0.040 m 0.001 m 0.184
Dist. elip 593.534 m 0.008 m 0.000 m -0.278

IGUANCAL --> LETRERO (PV31) Acimut 282°58'36" 0.849 seg -0.080 seg -0.257
ΔAlt. -51.338 m 0.036 m 0.003 m 0.209
Dist. elip 1789.837 m 0.011 m 0.001 m 0.189

ABRA --> GRANJA (PV26) Acimut 46°36'50" 4.554 seg -0.005 seg -0.039
 ΔAlt. 20.387 m 0.039 m 0.000 m -0.172
Dist. elip 355.485 m 0.006 m 0.000 m -0.023

LI01 --> GRANJA (PV13) Acimut 148°04'37" 0.047 seg 0.012 seg 0.036
ΔAlt. -28.151 m 0.100 m 0.027 m 0.145
Dist. elip 106303.401 m 0.032 m 0.003 m 0.037

HI5 --> LETRERO (PV17) Acimut 276°00'59" 0.648 seg -0.045 seg -0.094
ΔAlt. -75.139 m 0.039 m -0.001 m -0.043
Dist. elip 2335.515 m 0.011 m 0.000 m -0.007

Términos de covarianza

Precisión horiz. Precisión 3D

Punto de origen Al punto Componentes Error a posteriori
(Razón) (Razón)
ABRA 2 ABRA Acimut 343°41'57" 28.275 seg 1 : 8215 1 : 7845
ΔAlt. -0.834 m 0.034 m
ΔElev. -0.836 m 0.034 m
Dist. elip 29.299 m 0.004 m
CERCA A POZA H3 Acimut 68°26'19" 2.235 seg 1 : 76031 1 : 75651
ΔAlt. 6.936 m 0.040 m
ΔElev. 6.830 m 0.040 m
Dist. elip 593.534 m 0.008 m
CERRO POZA H3 Acimut 76°05'21" 2.043 seg 1 : 79461 1 : 79366
ΔAlt. 1.623 m 0.039 m
ΔElev. 1.497 m 0.039 m
Dist. elip 728.761 m 0.009 m
GRANJA ABRA Acimut 226°36'48" 4.566 seg 1 : 57122 1 : 51857
ΔAlt. -20.387 m 0.039 m
ΔElev. -20.321 m 0.039 m
Dist. elip 355.485 m 0.006 m
HI5 IGUANCAL Acimut 254°48'30" 1.018 seg 1 : 213347 1 : 199810
ΔAlt. -23.800 m 0.029 m
ΔElev. -23.695 m 0.029 m
Dist. elip 599.464 m 0.003 m
LETRERO HI5 Acimut 96°01'16" 0.650 seg 1 : 213428 1 : 216199
ΔAlt. 75.139 m 0.039 m
ΔElev. 74.795 m 0.039 m
Dist. elip 2335.515 m 0.011 m
LETRERO IGUANCAL Acimut 102°58'49" 0.851 seg 1 : 167830 1 : 170079
ΔAlt. 51.338 m 0.036 m
 ΔElev. 51.100 m 0.036 m
Dist. elip 1789.837 m 0.011 m
LI01 ABRA Acimut 148°15'53" 0.046 seg 1 : 3399195 1 : 3404219
ΔAlt. -48.539 m 0.093 m
ΔElev. -49.903 m 0.093 m
Dist. elip 106373.941 m 0.031 m
LI01 ABRA 2 Acimut 148°16'08" 0.046 seg 1 : 3396998 1 : 3402057
ΔAlt. -47.705 m 0.091 m
ΔElev. -49.067 m 0.091 m
Dist. elip 106402.167 m 0.031 m
LI01 CERCA A POZA Acimut 148°01'11" 0.031 seg 1 : 5424781 1 : 5433372
ΔAlt. -115.871 m 0.063 m
ΔElev. -117.128 m 0.063 m
Dist. elip 80685.243 m 0.015 m
LI01 CERRO POZA Acimut 148°05'50" 0.031 seg 1 : 5605049 1 : 5613231
ΔAlt. -110.558 m 0.056 m
ΔElev. -111.795 m 0.056 m
Dist. elip 80566.457 m 0.014 m
LI01 GRANJA Acimut 148°04'37" 0.047 seg 1 : 3309019 1 : 3313699
ΔAlt. -28.151 m 0.100 m
ΔElev. -29.581 m 0.100 m
Dist. elip 106303.401 m 0.032 m
LI01 H3 Acimut 147°36'21" 0.025 seg 1 : 5838243 1 : 5846637
ΔAlt. -108.935 m 0.057 m
ΔElev. -110.298 m 0.057 m
Dist. elip 80795.547 m 0.014 m
LI01 HI5 Acimut 145°57'29" 0.014 seg 1 : 9255054 1 : 9258449
ΔAlt. -18.702 m 0.044 m
ΔElev. -20.506 m 0.044 m
Dist. elip 82320.176 m 0.009 m
LI01 IGUANCAL Acimut 146°21'13" 0.014 seg 1 : 9414981 1 : 9417286
ΔAlt. -42.502 m 0.042 m
ΔElev. -44.201 m 0.042 m
Dist. elip 82127.546 m 0.009 m
LI01 LETRERO Acimut 147°13'25" 0.029 seg 1 : 6803552 1 : 6813303
ΔAlt. -93.841 m 0.050 m
ΔElev. -95.301 m 0.050 m
Dist. elip 80833.988 m 0.012 m

Proyecto:F:\10-GPS TRABAJOS NOV-

Fecha:13/12/2017 08:08:30 a.m. 2017\R Ortiz 09-11-2017\Lindero Asia 09- Trimble Business Center
11-2017-OK-A.vce
