E 2100000

G 807692
α 0.08
D 0.589423077

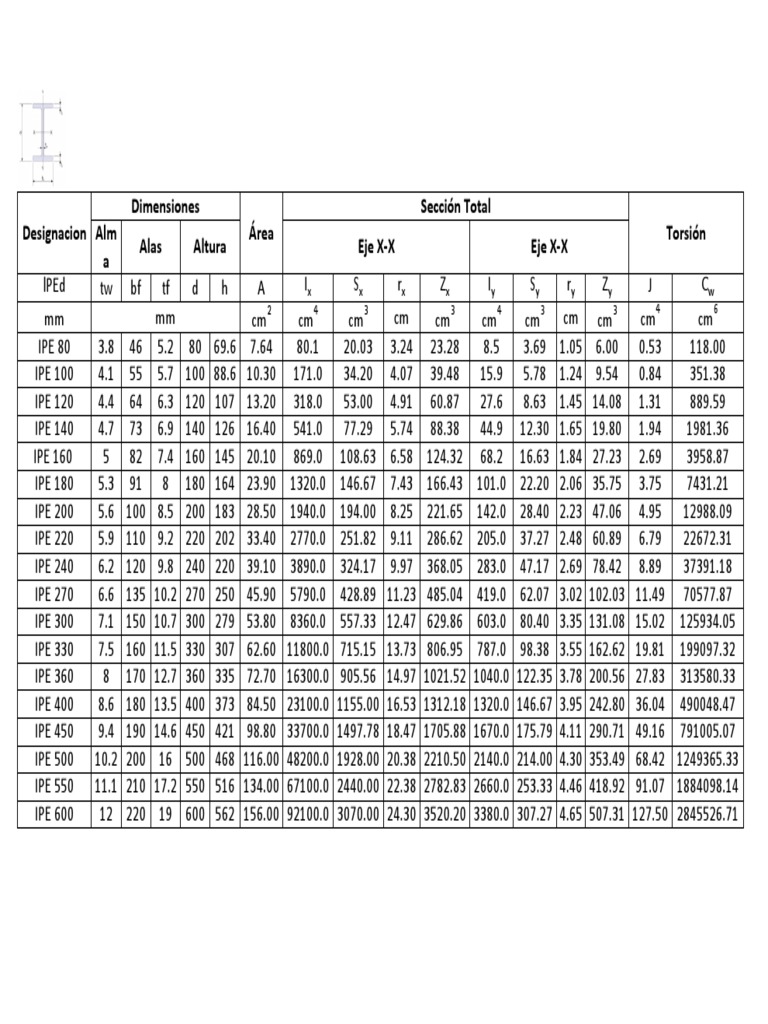

Dimensiones Sección Total

Designacion Alm Área Torsión
Alas Altura Eje X-X Eje X-X
a
lPEd tw bf tf d h A Ix Sx rx Zx Iy Sy ry Zy J Cw
mm mm cm
2
cm
4
cm
3
cm cm
3
cm
4
cm
3
cm cm
3
cm4 cm6
IPE 80 3.8 46 5.2 80 69.6 7.64 80.1 20.03 3.24 23.28 8.5 3.69 1.05 6.00 0.53 118.00
IPE 100 4.1 55 5.7 100 88.6 10.30 171.0 34.20 4.07 39.48 15.9 5.78 1.24 9.54 0.84 351.38
IPE 120 4.4 64 6.3 120 107 13.20 318.0 53.00 4.91 60.87 27.6 8.63 1.45 14.08 1.31 889.59
IPE 140 4.7 73 6.9 140 126 16.40 541.0 77.29 5.74 88.38 44.9 12.30 1.65 19.80 1.94 1981.36
IPE 160 5 82 7.4 160 145 20.10 869.0 108.63 6.58 124.32 68.2 16.63 1.84 27.23 2.69 3958.87
IPE 180 5.3 91 8 180 164 23.90 1320.0 146.67 7.43 166.43 101.0 22.20 2.06 35.75 3.75 7431.21
IPE 200 5.6 100 8.5 200 183 28.50 1940.0 194.00 8.25 221.65 142.0 28.40 2.23 47.06 4.95 12988.09
IPE 220 5.9 110 9.2 220 202 33.40 2770.0 251.82 9.11 286.62 205.0 37.27 2.48 60.89 6.79 22672.31
IPE 240 6.2 120 9.8 240 220 39.10 3890.0 324.17 9.97 368.05 283.0 47.17 2.69 78.42 8.89 37391.18
IPE 270 6.6 135 10.2 270 250 45.90 5790.0 428.89 11.23 485.04 419.0 62.07 3.02 102.03 11.49 70577.87
IPE 300 7.1 150 10.7 300 279 53.80 8360.0 557.33 12.47 629.86 603.0 80.40 3.35 131.08 15.02 125934.05
IPE 330 7.5 160 11.5 330 307 62.60 11800.0 715.15 13.73 806.95 787.0 98.38 3.55 162.62 19.81 199097.32
IPE 360 8 170 12.7 360 335 72.70 16300.0 905.56 14.97 1021.52 1040.0 122.35 3.78 200.56 27.83 313580.33
IPE 400 8.6 180 13.5 400 373 84.50 23100.0 1155.00 16.53 1312.18 1320.0 146.67 3.95 242.80 36.04 490048.47
IPE 450 9.4 190 14.6 450 421 98.80 33700.0 1497.78 18.47 1705.88 1670.0 175.79 4.11 290.71 49.16 791005.07
IPE 500 10.2 200 16 500 468 116.00 48200.0 1928.00 20.38 2210.50 2140.0 214.00 4.30 353.49 68.42 1249365.33
IPE 550 11.1 210 17.2 550 516 134.00 67100.0 2440.00 22.38 2782.83 2660.0 253.33 4.46 418.92 91.07 1884098.14
IPE 600 12 220 19 600 562 156.00 92100.0 3070.00 24.30 3520.20 3380.0 307.27 4.65 507.31 127.50 2845526.71
