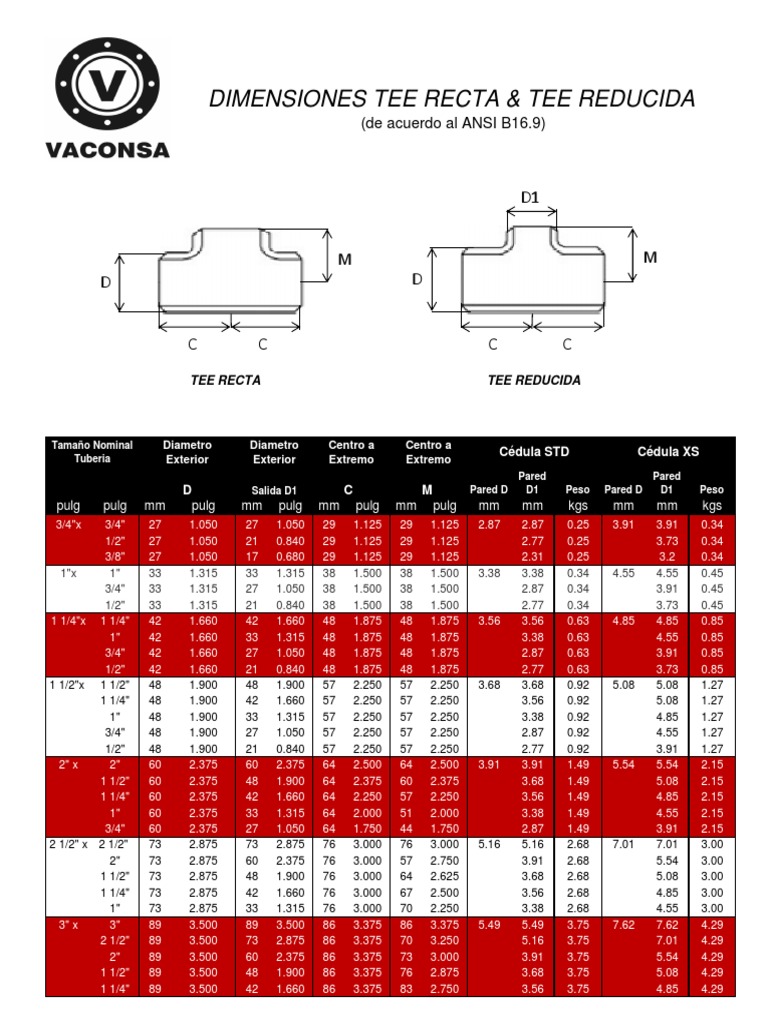

DIMENSIONES TEE RECTA & TEE REDUCIDA

(de acuerdo al ANSI B16.9)

D1

M M
D D

C C C C
TEE RECTA TEE REDUCIDA

Tamaño Nominal Diametro Diametro Centro a Centro a

Tuberia
Cédula STD Cédula XS
Exterior Exterior Extremo Extremo
Pared Pared
D Salida D1 C M Pared D D1 Peso Pared D D1 Peso
pulg pulg mm pulg mm pulg mm pulg mm pulg mm mm kgs mm mm kgs
3/4"x 3/4" 27 1.050 27 1.050 29 1.125 29 1.125 2.87 2.87 0.25 3.91 3.91 0.34
1/2" 27 1.050 21 0.840 29 1.125 29 1.125 2.77 0.25 3.73 0.34
3/8" 27 1.050 17 0.680 29 1.125 29 1.125 2.31 0.25 3.2 0.34
1"x 1" 33 1.315 33 1.315 38 1.500 38 1.500 3.38 3.38 0.34 4.55 4.55 0.45
3/4" 33 1.315 27 1.050 38 1.500 38 1.500 2.87 0.34 3.91 0.45
1/2" 33 1.315 21 0.840 38 1.500 38 1.500 2.77 0.34 3.73 0.45
1 1/4"x 1 1/4" 42 1.660 42 1.660 48 1.875 48 1.875 3.56 3.56 0.63 4.85 4.85 0.85
1" 42 1.660 33 1.315 48 1.875 48 1.875 3.38 0.63 4.55 0.85
3/4" 42 1.660 27 1.050 48 1.875 48 1.875 2.87 0.63 3.91 0.85
1/2" 42 1.660 21 0.840 48 1.875 48 1.875 2.77 0.63 3.73 0.85
1 1/2"x 1 1/2" 48 1.900 48 1.900 57 2.250 57 2.250 3.68 3.68 0.92 5.08 5.08 1.27
1 1/4" 48 1.900 42 1.660 57 2.250 57 2.250 3.56 0.92 5.08 1.27
1" 48 1.900 33 1.315 57 2.250 57 2.250 3.38 0.92 4.85 1.27
3/4" 48 1.900 27 1.050 57 2.250 57 2.250 2.87 0.92 4.55 1.27
1/2" 48 1.900 21 0.840 57 2.250 57 2.250 2.77 0.92 3.91 1.27
2" x 2" 60 2.375 60 2.375 64 2.500 64 2.500 3.91 3.91 1.49 5.54 5.54 2.15
1 1/2" 60 2.375 48 1.900 64 2.375 60 2.375 3.68 1.49 5.08 2.15
1 1/4" 60 2.375 42 1.660 64 2.250 57 2.250 3.56 1.49 4.85 2.15
1" 60 2.375 33 1.315 64 2.000 51 2.000 3.38 1.49 4.55 2.15
3/4" 60 2.375 27 1.050 64 1.750 44 1.750 2.87 1.49 3.91 2.15
2 1/2" x 2 1/2" 73 2.875 73 2.875 76 3.000 76 3.000 5.16 5.16 2.68 7.01 7.01 3.00
2" 73 2.875 60 2.375 76 3.000 57 2.750 3.91 2.68 5.54 3.00
1 1/2" 73 2.875 48 1.900 76 3.000 64 2.625 3.68 2.68 5.08 3.00
1 1/4" 73 2.875 42 1.660 76 3.000 67 2.500 3.56 2.68 4.85 3.00
1" 73 2.875 33 1.315 76 3.000 70 2.250 3.38 2.68 4.55 3.00
3" x 3" 89 3.500 89 3.500 86 3.375 86 3.375 5.49 5.49 3.75 7.62 7.62 4.29
2 1/2" 89 3.500 73 2.875 86 3.375 70 3.250 5.16 3.75 7.01 4.29
2" 89 3.500 60 2.375 86 3.375 73 3.000 3.91 3.75 5.54 4.29
1 1/2" 89 3.500 48 1.900 86 3.375 76 2.875 3.68 3.75 5.08 4.29
1 1/4" 89 3.500 42 1.660 86 3.375 83 2.750 3.56 3.75 4.85 4.29
4"x 4" 114 4.500 114 4.500 105 4.125 105 4.125 6.02 6.02 6.50 8.56 8.56 7.65
3" 114 4.500 89 3.500 105 4.125 89 3.875 5.49 6.50 7.62 7.65
2 1/2" 114 4.500 73 2.875 105 4.125 95 3.375 5.16 6.50 7.01 7.65
2" 114 4.500 60 2.375 105 4.125 98 3.500 3.91 6.50 5.54 7.65
1 1/2" 114 4.500 48 1.900 105 4.125 102 3.375 3.68 6.50 5.08 7.65
5" x 5" 141 5.563 141 5.563 124 4.875 124 4.875 6.55 6.55 8.22 9.53 9.53 12.10
4" 141 5.563 114 4.500 124 4.875 117 4.625 6.02 8.22 8.56 12.10
3" 141 5.563 89 3.500 124 4.875 11 4.375 5.49 7.99 7.62 12.10
2 1/2" 141 5.563 73 2.875 124 4.875 108 4.250 5.16 7.99 7.01 12.10
2" 141 5.563 60 2.375 124 4.875 105 4.125 3.91 7.81 5.54 12.10
6" x 6" 168 6.625 168 6.625 143 5.625 143 5.625 7.11 7.11 16.00 10.97 10.97 19.30
5" 168 6.625 141 5.563 143 5.625 137 5.375 6.55 16.00 9.53 19.30
4" 168 6.625 114 4.500 143 5.625 130 5.125 6.02 14.00 8.56 19.30
3" 168 6.625 89 3.500 143 5.625 124 4.875 5.49 14.00 7.62 19.30
2 1/2" 168 6.625 73 2.875 143 5.625 121 4.750 5.16 14.00 7.01 19.30
8" x 8" 219 8.625 219 8.625 178 7.000 178 7.000 8.18 8.18 27.00 12.70 12.70 33.00
6" 219 8.625 168 6.625 178 7.000 168 6.625 7.11 27.00 10.97 33.00
5" 219 8.625 141 5.563 178 7.000 162 6.375 6.55 27.00 9.53 33.00
4" 219 8.625 114 4.500 178 7.000 156 6.125 6.02 27.00 8.56 33.00
10" x 10" 273 10.750 273 10.750 216 8.500 216 8.500 9.27 9.27 39.63 12.70 12.70 53.53
8" 273 10.750 219 8.625 216 8.500 203 8.000 8.18 39.63 12.70 53.53
6" 273 10.750 168 6.625 216 8.500 194 7.625 7.11 39.63 10.97 53.53
4" 273 10.750 114 4.500 216 8.500 184 7.250 6.02 39.63 8.56 53.53
12" x 12" 324 12.750 324 12.750 254 10.000 254 10.000 9.53 9.53 63.00 12.70 12.70 78.00
10" 324 12.750 273 10.750 254 10.000 241 9.500 9.27 63.00 12.70 78.00
8" 324 12.750 219 8.625 254 10.000 229 9.000 8.18 63.00 12.70 74.82
6" 324 12.750 168 6.625 254 10.000 219 8.620 7.11 63.00 10.97 74.82
14" x 14" 356 12.750 356 14.000 279 11.000 279 11.000 9.53 9.53 102.00 12.70 12.70 115.00
12" 356 12.750 324 12.750 279 11.000 270 10.625 9.53 102.00 12.70 115.00
10" 356 12.750 273 10.750 279 11.000 257 10.125 9.27 97.60 12.70 109.55
8" 356 12.750 219 8.620 279 11.000 248 9.750 8.18 97.60 12.70 109.55
16" x 16" 406 16.000 406 16.000 305 12.000 305 12.000 9.53 9.53 110.00 12.70 12.70 167.00
14" 406 16.000 356 14.000 305 12.000 305 12.000 9.53 110.00 12.70 167.00
12" 406 16.000 324 12.750 305 12.000 295 11.625 9.53 110.00 12.70 164.00
10" 406 16.000 273 10.750 305 12.000 283 11.125 9.27 106.50 12.70 160.00
8" 406 16.000 219 8.625 305 12.000 273 10.750 8.18 106.50 12.70 160.00
18" x 18" 457 18.000 457 18.000 343 13.500 343 13.500 9.53 9.53 135.00 12.70 12.70 190.00
16" 457 18.000 406 16.000 343 13.500 330 13.000 9.53 135.00 12.70 190.00
14" 457 18.000 356 14.000 343 13.500 330 13.000 9.53 135.00 12.70 190.00
12" 457 18.000 324 12.000 343 13.500 321 12.625 9.53 135.00 12.70 164.00
10" 457 18.000 273 10.000 343 13.500 308 12.125 9.27 129.00 12.70 164.00

Todos los pesos son aproximados
